Step 2 - Deploy Compliance Edition for Exchange 2013 and Newer

  • Last updated on

Use this article to deploy the Barracuda Email Security Service, Advanced Threat Protection (ATP), and Barracuda Cloud Archiving Service components for Exchange 2013 and Newer in your environment. You must set up Barracuda Email Security Service before Barracuda Cloud Archiving Service.

Exchange user interfaces can change; refer to Microsoft documentation for configuration details.

Barracuda Cloud Archiving Service is integrated with Barracuda Cloud Control LDAP. Barracuda Email Security Service has a separate LDAP configuration setup to support multiple user roles across configured domains.

Step 1. Ensure Connectivity and Redundancy

  • Open your firewall ports to allow the IP address ranges based on your Barracuda Email Security Service instance; see Barracuda Email Security Service IP Ranges for a list of ranges based on your Barracuda Email Security Service instance
  • Where relevant, verify your network subnet is granted access to your mail server ACL and LDAP server
  • Block all port 25 traffic except for that originating from the Barracuda Email Security Service IP address ranges based on your Barracuda Email Security Service instance

Step 2. Launch the Barracuda Email Security Service Setup Wizard

Alternatively, you can manually set up the Barracuda Email Security Service using the web interface.

Configure Domain

  1. Log in to Barracuda Email Security Service, and go to the Domains page.
  2. Click Add Domain, and enter the following in the dialog box:
    1. Enter the primary Exchange domain name you want to filter, for example: corpdomain.com
    2. Enter the mail server hostname (FQDN) or IP address for the entered domain, for example: corpdomain-com.mail.protection.outlook.com
  3. Click Add; the Domains > Domain Settings page displays. If you are adding multiple mail servers, assign a priority level, and click Add.

  1. Log in to Barracuda Email Security Service, and click Enter Linking Code and Serial Number to activate your subscription:
  2. Enter the Serial Number and Linking Code, and click Activate Subscription:
  3. In the setup page, click Set up to the right of Email Security:
  4. In the setup wizard, click Get Started. The Specify Primary Email Domain page displays.
  5. Enter the primary Exchange domain you want to filter, for example: cudaware.com
  6. Click Next. The Specify Email Servers page displays. Enter the mail server hostname (FQDN) or IP address for the domain entered in the previous step,

    If the Barracuda Email Security Service Setup wizard has already identified your mail server IP based on the MX record, the Mail Servers field pre-populates.

  7. Click Add. Enter an email address to test the server configuration, and click Test All Mail Servers.
  8. Once the mail server is verified, the Verified (verified_icon.png) icon displays in the status column and a confirmation message displays at the top of the page.
  9. Click Next. The Configure Settings page displays. Select from the following options:
    1. Virus Protection – Set to On to direct the Barracuda Email Security Service to detect and block viruses on inbound email.
    2. Spam Protection – Set to On to direct the Barracuda Email Security Service to evaluate inbound mail for spam based on a score assigned to each processed message. When set to Off inbound mail is not scanned for spam.
    3. Spam Scoring – Set Spam Protection to On to enable Spam Scoring. Scoring ranges from 1 (definitely not spam) to 10 (definitely spam). Setting a score of '1' will likely block legitimate messages while setting a score of '10' will allow more messages through the system. Based on this score the Barracuda Email Security Service blocks messages that appear to be spam and logs these messages in the user's Message Log with Score as the reason for the block.

      The following features, configured on the Inbound Settings > Anti-Spam/Antivirus page, are enabled when Spam Protection is set to On:
      • Barracuda Reputation Block List (BRBL) – Database of IP addresses manually verified to be a noted source of spam.
      Barracuda Real-Time System (BRTS) – Advanced service to detect zero-hour spam and virus outbreaks even where traditional heuristics and signatures to detect such messages do not yet exist. Each quarantined message has a reason of BRTS in the Message Log.
      Sender Policy Framework (SPF) – Block Fail is disabled.
      Barracuda Anti-Fraud Intelligence – Barracuda Networks anti-phishing detection which uses a special Bayesian database for detecting Phishing scams.
      Intent Analysis – Blocking based on intent analysis.
      CloudScan Scoring – A cloud-based spam scanning engine which assigns a score to each message processed ranging from 0 (definitely not spam) to 10 (definitely spam).

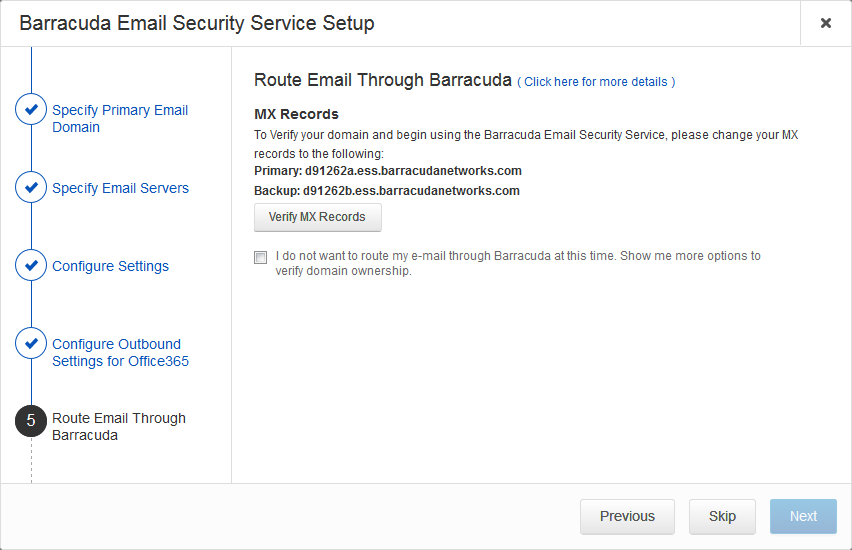

  10. Click Next. The Route Email Through Barracuda page displays.

  11. To verify your domain, replace your current MX records with the Barracuda Email Security Service Primary and Backup MX records displayed on the page:

    During the evaluation period, to complete the verification process but allow your legitimate mail to continue using your current mail server, you can add the MX records with a low priority, for example, 99.

    Some mail may appear in the Message Log after making this MX record change as spammers routinely send mail to all MX records for a domain.

    Once you have made the change to your MX records, return to the Route Email Through Barracuda page and click Verify MX Records. The Barracuda Email Security Service should see the changes made and verify your domain. If the domain does not verify correctly, verify that your MX changes are live. You can do this by using the following sites that return your MX information:

    http://mxtoolbox.com/
    https://toolbox.googleapps.com/apps/dig/ (select the MX option)

    If your domain's MX records do not display in the Barracuda Email Security Service MX records, you must wait until they display before your domain can be verified.

  12. If you only want to route your inbound mail through the Barracuda Email Security Service and not your outbound mail, select I do not want to route my e-mail through Barracuda at this time:
  13. Select the verification option:
    1. CNAME Records – To use the CNAME records method to verify the domain ownership:
      1. Log in to your DNS Server and, under this domain, create a subdomain whose name is created by concatenating 'barracuda' and the CNAME token shown in the Route Email Through Barracuda page. For example: barracuda30929916985.corpdomain.com

      2. Point the CNAME record of that subdomain to ess.barracuda.com

        Allow the DNS propagation to take effect before proceeding.

      3. Click Confirm Validation in the Route Email Through Barracuda page.

    2. Email to Technical Contact – This method sends a verification email to the technical contact email address, if it exists, listed on your domain's WHOIS entry.

      This verification option is not available if the Barracuda Email Security Service cannot find your domain's WHOIS entry. If there is not a technical contact, then only the MX Records, CNAME, and Email to the Postmaster options displays on this page.

    3. Email to the postmaster – This method sends a verification email to the postmaster email address for your domain. The confirmation email includes a link that the recipient must click to verify the domain.

      This option is available if the Barracuda Email Security Service can find your postmaster in your domain’s WHOIS records. This method sends a verification email to the postmaster email address for your domain. The confirmation email includes a link that the recipient must click to verify the domain.

  14. Click Next, and click Next again.

  15. On the Select Data Center Region page, select the data center for your locale, and click Get Started.

  16. Complete the wizard pages.

  17. The Confirmation page displays. Confirm domain ownership, and then click Done.

Step 3. Set Up User Accounts

You can add users manually, or use your organization's LDAP server or Azure AD service to automatically synchronize the Barracuda Email Security Service with your active directory server. To create a few test accounts during the evaluation period, use the Manually Add Users steps below.

Decide how you want to use quarantine:

  • Global quarantine – When selected, the administrator monitors the Message Log for quarantined mail and decides whether or not it is spam.
  • Per-user quarantine – When selected, users have quarantine accounts and can decide whether or not mail is spam. Set up several users for the evaluation and test the results. This option requires more initial effort to set up user accounts, possibly with sync to your active directory server, but less work for the administrator over time since users manage their quarantined mail.

    Quarantine Type
    Create User Accounts
    Manages Quarantine?
    User can Create Sender Whitelist/Blocklist
    Global No Admin No
    Per-user Yes User Yes
  1. If you select Global quarantine, there is no need to create user accounts.
  2. If you select Per-user quarantine, manually add a few test accounts on the Users > Add/Update Users page, and set Enable User Quarantine to Yes. The first time the Barracuda Email Security Service receives an email for that user and the message is quarantined, the user receives a quarantine notification email at the scheduled quarantine notification interval. Depending on how you configure the quarantine notification interval on the Users > Quarantine Notification page, the user receives a quarantine digest at a specified time.
Manually Add Users
  1. Go to Users > Add/Update Users:
  2. In the User Accounts field, enter each user email address for the domain on a separate line, and then select from the following options:
    1. Enable User Quarantine – All emails for the user which meet the configured block policy go to the user's quarantine account.

      Depending on how you have configured the quarantine notification interval on the Users > Quarantine Notification page, the user receives a quarantine digest at a specified time. From the Users > Quarantine Notification page you can also allow the user to set their own quarantine notification interval.

    2. Notify New Users – When set to Yes, users receive a welcome email when the account is created.

  3. Click Save Changes. The users are added to the Users > Users List table where you can select from the following actions:

    1. Edit – Click to specify domains this user can manage.

    2. Reset – Click to send the user an email with instructions on how to reset their account password.

    3. Log in as this user – Click to view or change the user's settings (for example, quarantine notifications), v iew/manage the domains this user manages, and v iew/search/manage the user's Message Log.

    4. Delete – Click to remove the user account.

  4. Click Save Changes; the Users List displays:

The first time the Barracuda Email Security Service receives an Allowed email for a non-existent user at a domain configured for the service, if that same recipient receives a second email 1-6 days later, a new user account is created. This method of new account creation does not use LDAP lookup, and the user receives an email from the Barracuda Email Security Service with their login information so they can access their quarantine account.

Automatically Add Users

You can configure user authentication via your organization's LDAP server or Azure AD service. For complete setup details, see the following articles:

Step 4. Configure Outbound Mail Scanning

  1. Log in to the Barracuda Email Security Service, and go to Outbound Settings > Sender IP Address Ranges.
  2. Enter the IP Address and Domain Name (logging domain) and optional Comment for IP address ranges allowed to send outgoing email from your domains. Click Add. Note that each mail server must contain a reverse DNS PTR record.
  3. Add all IP addresses from which outgoing mail is allowed to flow through the Barracuda Email Security Service. The Logging Domain is the domain name that appears in the Message Log as the sending domain for the associated IP address.

Step 5. Configure Your Exchange Mail Server

Complete the following steps for each domain from which you are relaying outbound mail:

  1. Log in to the Barracuda Email Security Service, and go to Domains > Domain Manager.
  2. Note the Outbound Hostname for the domain that is to relay outbound mail.
  3. Specify this value in your mail server or smart host.

Step 6. Verify Mail is Flowing

  1. Log in to the Barracuda Email Security Service.
  2. In the Dashboard page, verify inbound and outbound messages are being logged for the selected domain.

    You can also click Message Log to view inbound and outbound email traffic. Use the filters to refine your search.



Step 7. Configure Sender Policy Framework for Outbound Mail

To assure Barracuda Networks is the authorized sending mail service of outbound mail from your Barracuda Email Security Service, add the following to the Sender Policy Framework (SPF) record INCLUDE line of the SPF record for your sending mail server for each domain sending outbound mail. Select the relevant SPF INCLUDE based on the region you selected for your Barracuda Email Security Service. See Sender Authentication for more information.

  • If you have an SPF record set up for your domain, edit the existing record, and add the following to the INCLUDE line for each domain sending outbound mail based on your Barracuda Email Security Service instance. For example: include:spf.ess.barracudanetworks.com -all
  • If you do not have an SPF record set up for your domain, use the following value to create a TXT record that creates a HARDFail SPF for your domain based on your Barracuda Email Security Service instance. For example: v=spf1 include:spf.ess.barracudanetworks.com -all

See Sender Policy Framework for Outbound Mail for INCLUDE values based on your Barracuda Email Security Service instance.

For additional configuration options and features, log in to the web interface, and click Help.







Step 8. Enable Advanced Threat Protection

Files blocked by ATP display on the Dashboard.

  1. Go to ATP Settings, and select the desired option:
    • Deliver First, then Scan – Attachments are delivered with the message to the recipient and then scanned by the ATP service; if a virus is detected, an email notification is sent to the email recipient. Additionally, if Notify Admin is set to Yes, and a virus is detected in the scanned attachment, an email is sent to the administrator.
    • Scan First, then Deliver – Attachments are scanned by the ATP service before delivery. If a virus is detected in the attachment the message is blocked, otherwise it is delivered to the recipient.
  2. Select whether to Notify Admin if a virus is detected in a scanned attachment. When set to Yes, enter the ATP Notification Email address in the associated field.

When ATP is set to either Deliver First, then Scan or Scan First, then Deliver, you can exempt sender email addresses, sender domains, recipient email addresses, recipient domains, or sender IP addresses from ATP scanning in the ATP Exemptions section on the ATP Settings page.



Continue with Step 3 - Deploy Compliance Edition for Exchange 2013 and Newer to deploy the Barracuda Cloud Archiving Service component.
