Barracuda Reporting Server

Dashboard

  • Last updated on

The Barracuda Reporting Server includes an interactive Dashboard where you can get an overview of issues in one place.

To view the Dashboard, navigate to the BASIC > Dashboard page.

By default, the information on the Dashboard refreshes automatically every 30 minutes, so you can leave the page up and see recent status.

Overview – Device Selection

You can set the connected device for which you want the Dashboard to display reports.

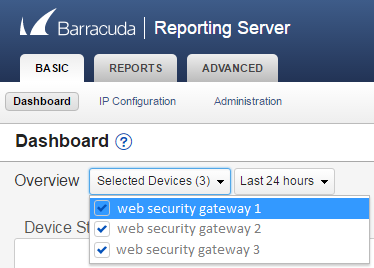

At the top of the BASIC > Dashboard page, make selections in the Overview area.

  • In the first pull-down menu, select the connected device for which you want to see reports.
    Note that devices that are disconnected are still available here, since their data is still available.
  • In the second pull-down menu, select the time frame for the reports: Last 24 hours, Last 7 days, Last 30 days

By default, All Connected Devices are displayed, showing data from the Last 24 Hours.


Note: Device selection and time frame are remembered each time you open the Dashboard.

Device Statistics


This graph can display a number of different statistics tied to the Barracuda Web Security Gateways that are connected to the Barracuda Reporting Server. Select the graph you want to view from the following options:

  • Total Blocked – (Default) Displays the number of policy, spyware, and virus blocks for the specified time period.
  • Blocked Policy Displays the number of policy blocks for the specified time period.
  • Blocked Spyware Displays the number of spyware blocks for the specified time period.
  • Blocked Virus Displays the number of virus blocks for the specified time period.
  • Total Allowed Displays the number or requests allowed to pass through the Barracuda Web Security Gateway for the specified time period.

You can also cycle through the various graphs by clicking the circles below the graph dash.GraphCircles.png. Each circle represents a different graph subject.

Recently Flagged Terms

This section lists the most recent flagged terms being tracked by the Barracuda Web Security Gateway when both SSL Inspection and Web Application Monitoring are enabled. If either one of these settings is not enabled, no data can be displayed in this section.

The following information is displayed in table form:

  • Device Name  The name of the device you selected at the top of the page, in the Overview section.
  • User  The name of the user making the requests.
  • IP Address  The IP address of the user.
  • Source  The domain in which the flagged terms were used.
  • Keywords  The word or phrase that was flagged.
  • Time  The time the flagged term was used, in local time, according to your configuration.

Note: If no flagged terms are available, ensure that the following two settings are enabled on your connected Barracuda Web Security Gateways.

  • SSL Inspection
  • Web Application Monitoring

If either one of these settings is not enabled, no data can be displayed in this section.

System Status

This section indicates the current operational status of the Barracuda Reporting Server.

For detailed information about the status of the Barracuda Reporting Server, click Details. The following information displays in a separate table. Note that there are multiple CPU and system fans.

  • Uptime – How long the Barracuda Reporting Server has been up and running.
  • System Load – A dynamic representation of the load on the Barracuda Reporting Server.
  • CPU Temperature – The temperature of the CPU within the Barracuda Reporting Server appliance.
  • CPU Fan Speed  The fan speed of the CPU within the Barracuda Reporting Server appliance, in revolutions per minute (RPMs).
  • System Temperature – The temperature of the Barracuda Reporting Server appliance.
  • System Fan Speed The fan speed of the Barracuda Reporting Server appliance, in revolutions per minute (RPMs).

Subscription Status

Displays the current status of the Energize UpdatesInstant Replacement, and Premium Support subscriptions for the Barracuda Reporting Server.

Connected Devices

Lists the current operational status of each of the Barracuda Web Security Gateways linked to the Barracuda Reporting Server, as well as the Barracuda Reporting Server operational status for the logs received and processed for each connected device.

For information about the status of each device, click Details. The following information is displayed in a separate table:

  • Device Name – Name of the Barracuda Web Security Gateway linked to the Barracuda Reporting Server.
  • Model – Model number of the linked Barracuda Web Security Gateway.
  • Firmware – Version of the firmware installed on the linked Barracuda Web Security Gateway.
  • Status – Whether the Barracuda Web Security Gateway is connected to the Barracuda Reporting Server. Status values are:
    • Connected The device is connected and functioning properly.
    • Disconnected The device was intentionally disconnected and was disconnected successfully.
    • Error There is an error with the device connection. The device is not communicating with the Barracuda Reporting Server. For troubleshooting information, refer to Troubleshooting.
  • Last Log Received – Date and time stamp of the last time a log was passed from the Barracuda Web Security Gateway to the Barracuda Reporting Server.
  • Last Log Processed – Date and time stamp of the last time a log from this device was processed by the Barracuda Reporting Server.
  • Storage Used – How much of the available storage on the device has been used.
  • Log Retention – Length of time event logs are maintained on the Barracuda Reporting Server. Change this setting on the Administration page.
Pending Log Status

If the Last Log Received or Last Log Processed in the Connected Devices Details window shows as Pending, make sure that:

  • In the same Connected Devices Details window, the Status is Connected, rather than Disconnected or Error.
  • Your Web Security Gateway device has data going through it.
  • The credentials of Shared Secret and IP Address are entered correctly, as described in Step 4 - Connect Devices.

The time frame for Pending status corresponds to how long the Web Security Gateway has been connected to the Barracuda Reporting Server:

  • For new connections: about 10-15 minutes until the Web Security Gateway sends data to the Barracuda Reporting Server.
  • For established connections: up to 30 minutes for the Barracuda Reporting Server to receive incoming logs.

Productivity


Select to display a graph of the Top Super Categories (default), Top Categories, Top Users, or Top Domains from the drop-down menu on the top left. Adjust the units to display by Requests, Bandwidth, or Browsing Time with the drop-down menu on the top right.

Web Activity

Select to display a graph of total web activity in Bandwidth (default) or Requests as measured by the Barracuda Web Security Gateway.

HTTP traffic is the difference between Total Traffic and HTTPS Traffic shown on the graph.


Reporting Server Storage

Displays a graph of the hard disk space currently being used to store reporting information. Hover over the gray section of the graph to see space that is still available.

Each connected device appears in a different color. Hover over each color for details on the corresponding connected device.
