Barracuda Data Inspector

Reports

  • Last updated on

Barracuda Networks offers a report of detections that can be manipulated by setting column filters or choosing what and how data will be displayed.

To access the Data Inspector report, click on the Reports icon reports-icon.png in the left-side navigation.


Customize the report

The report can be customized in various ways.

Visual display format

You can choose how the data will be visually represented by clicking one of the display options at top-right. Click to see it as a bar chart, or to view it as a line graph.

Text Search

Anything entered in the Search box below the graph will be matched against data in any of the available table columns (whether those columns are displayed or not).

Date range

Click the calendar icon calendar-icon.png in the Date Range box and select from the left side of the popup to view data in the following increments: Yesterday, Last 7 days, Last 30 days, This month, or Last month. Or use the calendar displays in the popup to choose the start and end date of any period within the last 90 days.

Edit columns

Click the Edit columns button to select or deselect the columns to display in the table below the graph. A flyout appears on the right side of the screen. Check or uncheck boxes to make your selections. Enter a column name in the search box to quickly find or limit column options.

Sorting table data

The table and graph data can also be sorted by clicking on or dragging some of the table column titles.


The double arrows icon double-arrow-icon.png shows that you can sort by this column in ascending or descending order. The single up or down arrow signifies that the displayed table data is sorted by this column.

(Example: clicking the arrows next to the File Name column header will display the rows by the alphabetical order of the file names detected. Clicking the Up arrow reverses the order.)

Clicking the funnel icon funnel.png will bring up a model allowing you to further define your filtering criteria. The image below is for the File Extension column. It shows a Condition dropdown list and a field to add a value.

(Example: Condition = does not contain , value = xls This will remove any file with an extension containing xls from the displayed results, like thisfile.xlsx)

The two horizontal lines icon horiz-lines.png can be clicked on and drug up to the blue bar immediately above it. (When the bar is empty, it shows “Drag a column header and drop it here to group by that column.”)

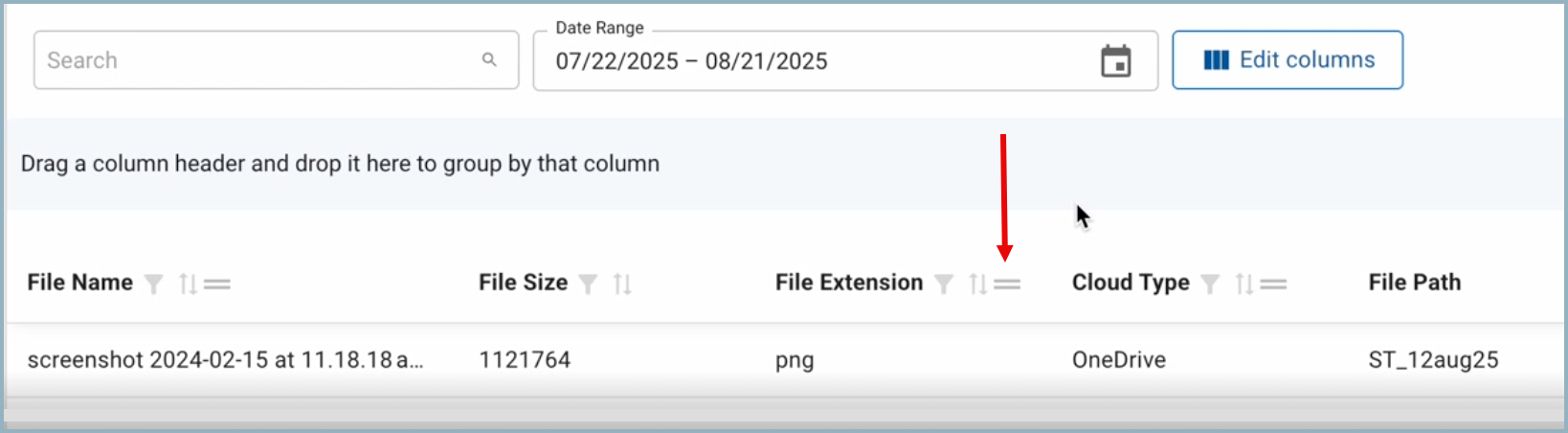

This image shows the icon to click on and drag.

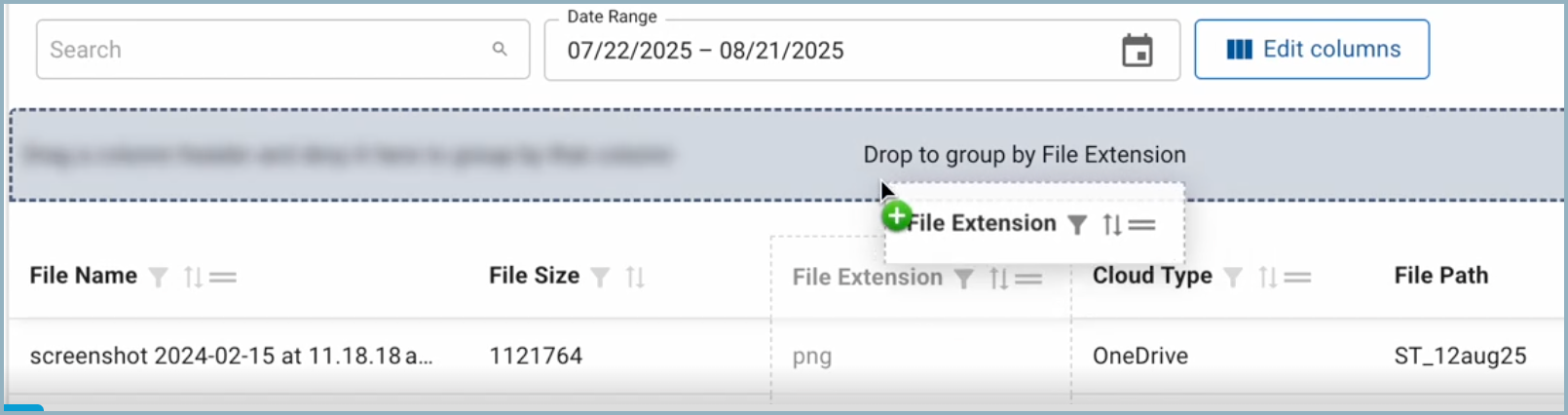

Then drag to the blue bar.

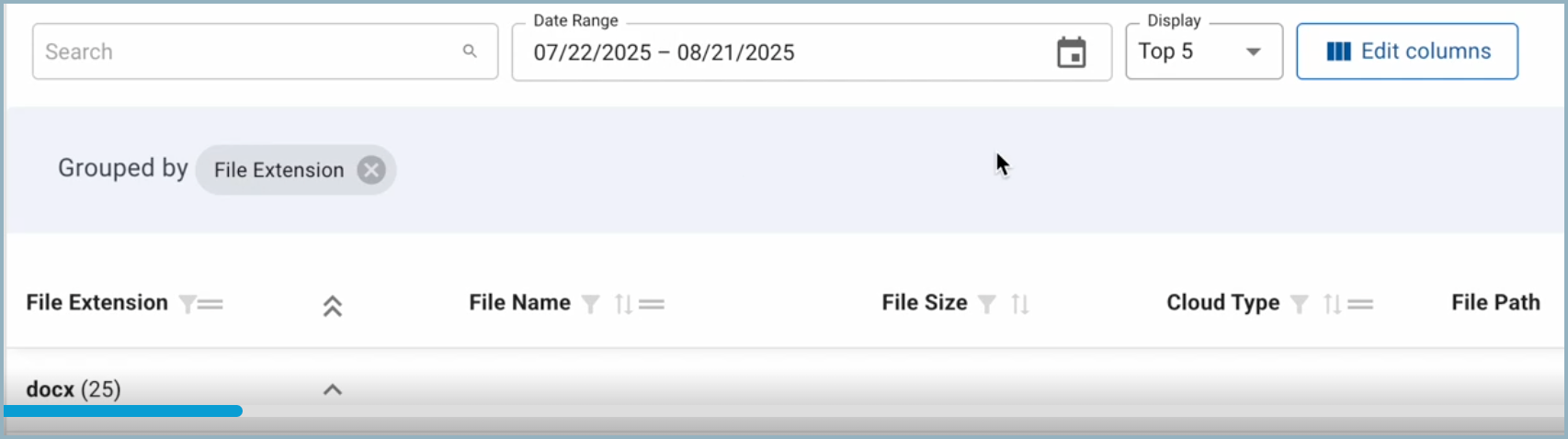

After dragging, the blue “grouped by” bar will look like this.

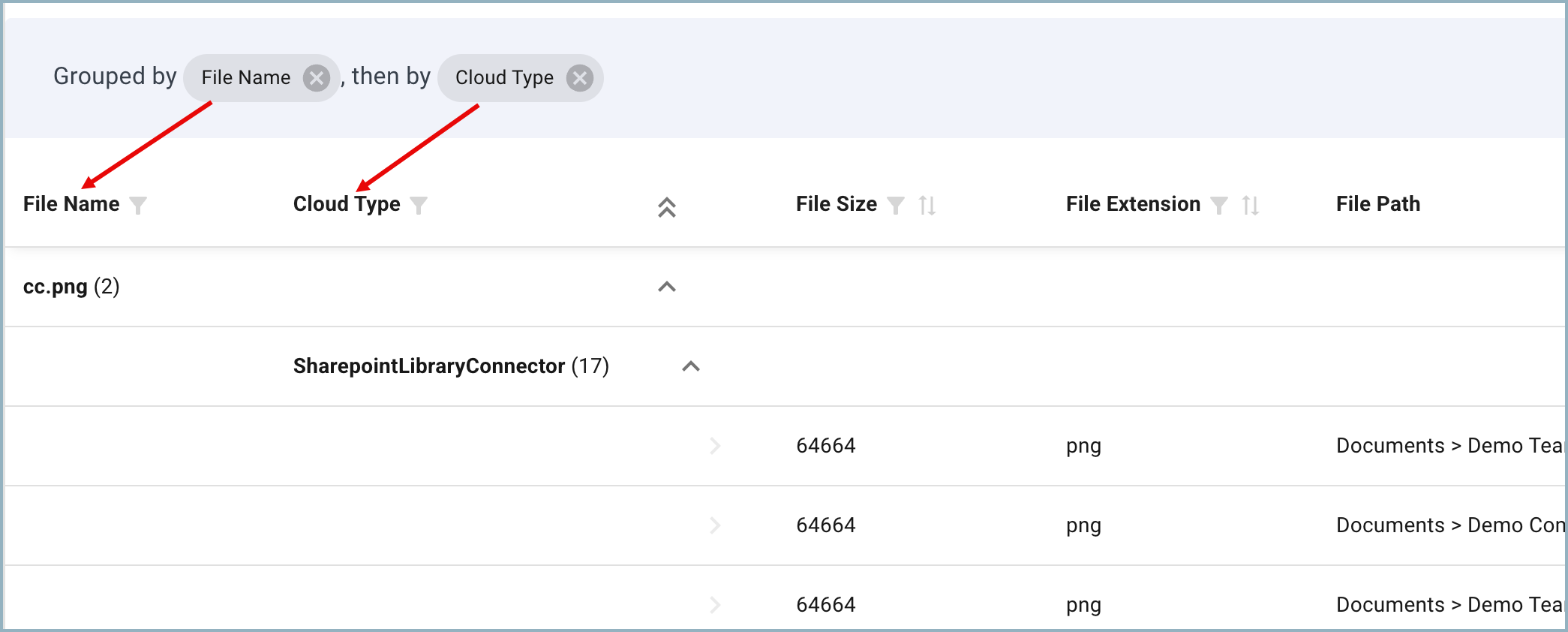

Up to two columns types can be added to the grouping bar. Items are grouped by the first column type and then within that grouping the second column type is grouped.


Table data columns

  • Classifiers – Categories of sensitive data detected in the file

  • Cloud Type – OneDrive or Sharepoint

  • File Extension – Shows only the file’s extension. Example: .pdf

  • File Name – The full name of each file

  • File Path – The file’s location

  • File Size – File size in bytes

  • Finding Categories – The category in which the violation was detected. Example: content

  • Last Detected – The last time a file was detected to be sensitive or malicious

  • Owner – The person or group that owns each file

  • Sharing – File sharing classifications are: Private, Protected, Public, External, Tenant and Internal

  • Violations – Number of times a violation was detected for a file
