The Barracuda Encrypted Backup appliances are no longer available. Encryption of data at rest has been added as a standard feature to all Barracuda Backup appliances (Models 190-1191). For more information, see Data Encryption on Barracuda Backup Appliances.
Customers with a Barracuda Encrypted Backup appliance (Models 6090, 8090, 9090, 10090) will continue to be supported. If the Barracuda Encrypted Backup appliance fails, and you have an active Instant Replacement subscription, your replacement appliance will be equivalent to your current model and capacity.
This article refers to Barracuda Encrypted Backup appliances. For specifications on the Barracuda Backup appliance, see Barracuda Backup Appliance Hardware Specifications.
Secure your data against physical theft with Barracuda’s hardware-encrypted purpose-built backup appliances to prevent sensitive and critical data from falling into the wrong hands if disk drives are lost or stolen.
Barracuda Encrypted Backup allows organizations to quickly and cost-effectively deploy hardware-encrypted backup appliances in their environment to protect encrypted sources and meet regulatory requirements.
Barracuda Encrypted Backup appliances help secure against data loss if disk drives are lost or stolen. The encrypted data on the disk drives is inaccessible when separated from the backup appliance – making sure it cannot be used maliciously when in the wrong hands.
Barracuda Encrypted Backup appliances use hardware encryption, avoiding the significant performance and efficiency degradation that plague software-based approaches.
Encryption models protect data with hardware-based encryption.
Communication between the RAID controller and the hard disks uses AES 128-bit encryption. However, data stored on the hard disks uses AES 256-bit encryption.
The Barracuda Encrypted Backup appliance ships with a default security/encryption key. Once you enter a new encryption key during the initial configuration, the key is known only to you; Barracuda cannot retrieve your key.
The Barracuda Encrypted Backup appliance also provides the option to configure a power-on password for additional security.
Barracuda Encrypted Backup Model 6090, 8090, 9090, and 10090 Comparison
MODEL | 6090 | 8090 | 9090 | 10090 |
|---|---|---|---|---|
CAPACITY | ||||
Usable Storage Capacity | 12 TB | 24 TB | 48 TB | 96 TB |
Recommended Environment | 6 TB | 12 TB | 24 TB | 48 TB |
SPECIFICATIONS | ||||
Form Factor | 1U | 2U | 3U | 4U |
Dimensions | 17.2 x 1.7 x 27.0 | 17.4 x 3.5 x 25.8 | 17.4 x 5.3 x 23.8 | 17.4 x 7.0 x 27.9 |
Weight (lbs) | 24 | 48 | 68 | 105 |
Network Interface | 2 x 1GB RJ45 | 2 x 10GB RJ45 | ||
10Gb Fiber | N/A | 2-port SFP+ | ||
Disk Arrangement | 4 x 6 TB | 8 x 6 TB | 12 x 6 TB | 20 x 6 TB |
Redundant Disk Array (RAID) | HW RAID 10 | HW RAID 60 | ||
Dedicated Database and OS Disks | N/A | 4 x 6 TB | ||
Redundant Disk Array (OS) | N/A | HW RAID 10 | ||
Swappable Disks | Hot Swappable | |||
Redundant Power Supplies | N/A | Hot Swappable | ||
AC Input Current | 1.3 | 2.5 | 3.4 | 6.4 |
Site-to-Site Replication | Sender/Receiver | |||
FEATURES | ||||
Deployment Options | Physical Appliance, Encrypted Physical Appliance, Virtual Appliance | |||
Offsite Replication | Remote Physical Appliance, Remote Virtual Appliance, Barracuda Cloud Storage | |||
Management Interface | Barracuda Cloud Control Centralized Administration | |||
Backup Agents | Microsoft Windows (Microsoft Server, Hyper-V, Exchange, SQL), Linus, macOS | |||
Network Backups | Network Attached Storage (NAS) | |||
Host-Level Virtual Environments | VMware vSphere, Microsoft Hyper-V | |||
Guest-Level Virtual Environments | Citrix XenServer, Kernel-based Virtual Machine (KVM), Oracle VM, Red Hat Virtualization | |||
Deduplication | Global, Inline, Block-Level, Source- and Target-Based | |||
Rapid Recovery | LiveBoot, Cloud LiveBoot, Physical-to-Virtual (P2V), LiveBrowse | |||
Long-Term Retention | Offsite Vaulting to Barracuda Cloud, External Disk, Tape, Autoloader, Robotic Library | |||
For more information on calculating the power consumption in watts, see Barracuda Networks Product Power Consumption in Watts.
Drive Layout

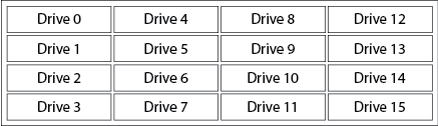

Barracuda Backup Models 990 and 995 Drive Layout

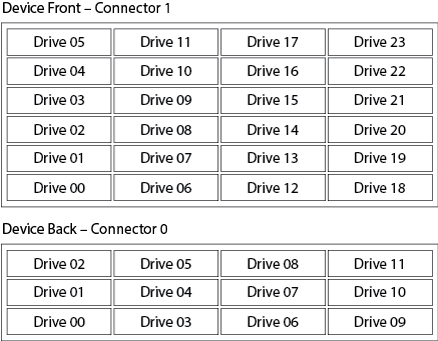

Barracuda Backup Model 1090 Drive Layout
Barracuda Encrypted Backup Model 8090 Drive Layout
Barracuda Encrypted Backup Model 9090 Drive Layout
Barracuda Encrypted Backup Model Model 10090 Drive Layout
