Barracuda CloudGen Firewall

Hardware Models

  • Last updated on

The Barracuda CloudGen Firewall F-Series is available in multiple hardware models that meet different networking requirements for small or home offices to large data centers.

When a hardware model is updated, it is released as a new revision. For example, the second version of the F800 is released as the F800 Revision B. When a new revision is launched, the preceding revision is phased out. The sticker on the back of your appliance includes information on the model revision. E.g: Rev.C BAR-NG-1234567.

Hardware Appliances

ModelHousingPort DensityForm FactorRequired Firmware
SC2
Revision A





  • 3x 1GbE (LAN)
  • 1x 1GbE PoE recipient (WAN)
  • Wi-Fi (optional)
  • 3G/UMTS or 4G /LTE (optional)
CompactSC 2.0.0 or higher

SC3
Revision A





  • 3x 1GbE (LAN)
  • 1x 1GbE PoE recipient (WAN)
  • Wi-Fi (optional)
  • 3G/UMTS or 4G /LTE (optional)
CompactSC 3.0.0 or higher

F12
Revision A
  • 5x 10/100/1000 MBit RJ45 Ethernet ports
Compact
  • 8.0.1 or higher

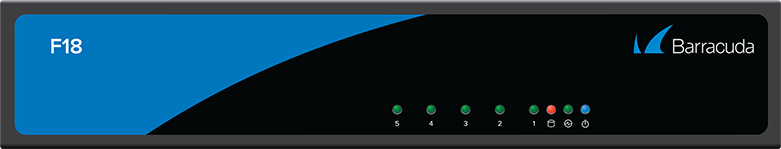

F18
Revision B



  • 5x 10/100/1000 MBit RJ45 Ethernet ports
Compact
  • 8.0.1 or higher

F80
Revision B



  • 5x 10/100/1000 MBit RJ45 Ethernet ports
  • Integrated Wi-Fi (IEEE 802.11b/g/n)

Compact



  • 8.0.1 or higher

F82 DSL
Revision A










F82 Annex-A

  • 4x 10/100/1000 MBit RJ45 Ethernet ports
  • RJ 11 (Annex A)
  • 1 GbE Optical Fiber SFP
  • Integrated Wi-Fi (IEEE 802.11b/g/n)



F82 Annex-B

  • 4x 10/100/1000 MBit RJ45 Ethernet ports
  • RJ45 (Annex B/J)
  • 1 GbE Optical Fiber SFP
  • Integrated Wi-Fi (IEEE 802.11b/g/n)
Compact
  • 8.0.1 or higher

F93
Revision a.R
  • 2x 1 GbE RJ45 Ethernet ports
  • 1x 1 GbE Optical Fiber SFP
Compact
  • 8.0.3 or higher
  • 8.2.0 or higher

F180
Revision B





  • 12x 10/100/1000 MBit RJ45 Ethernet ports
  • 4x 1 GbE Optical Fiber SFP
  • Integrated Wi-Fi (IEEE 802.11b/g/n)
Compact
  • 8.0.4 + Hotfix 1039 or higher

F193
Revision a.R
  • 5x 1 GbE RJ45 Ethernet ports
  • 2x 1 GbE Optical Fiber SFP
Compact
  • 8.0.3 or higher
  • 8.2.0 or higher

F280
Revision C



  • 12x 10/100/1000 MBit RJ45 Ethernet ports
  • 4x 1 GbE Optical Fiber SFP
  • Integrated Wi-Fi (IEEE 802.11b/g/n)
Desktop
  • 8.0.4 + Hotfix 1039 or higher

F380
Revision B





  • 8x 10/100/1000 MBit RJ45 Ethernet ports
  • 2x 10 GbE Optical Fiber SFP+
1U Rackmount
  • 8.0.4 + Hotfix 1039 or higher

F400
Revision C





  • 8x 10/100/1000 MBit RJ45 Ethernet ports
  • 2x 10 GbE Optical Fiber SFP+
1U Rackmount
  • 8.0.3 + Hotfix 1029 or higher
  • 8.0.4 or higher

F400.F20
Revision C





  • 8x 10/100/1000 MBit RJ45 Ethernet ports
  • 4x 1 GbE Optical Fiber SFP
  • 2x 10 GbE Optical Fiber SFP+
1U Rackmount
  • 8.0.3 + Hotfix 1029 or higher
  • 8.0.4 or higher

F600.C10
Revision D





  • 18x 10/100/1000 MBit RJ45 Ethernet ports
1U Rackmount
  • 8.0.1 or higher

F600.C20
Revision D





  • 18x 10/100/1000 MBit RJ45 Ethernet ports
1U Rackmount
  • 8.0.1 or higher

F600.F10
Revision D





  • 10x 10/100/1000 MBit RJ45 Ethernet ports
  • 8x 1 GbE Optical Fiber SFP
1U Rackmount
  • 8.0.1 or higher

F600.F20
Revision D





  • 10x 10/100/1000 MBit RJ45 Ethernet ports
  • 8x 1 GbE Optical Fiber SFP
1U Rackmount
  • 8.0.1 or higher

F600.E20
Revision D





  • 10x 10/100/1000 MBit RJ45 Ethernet ports
  • 8x 1 GbE Optical Fiber SFP
  • 2x 10 GbE Optical Fiber SFP+
1U Rackmount
  • 8.0.1 or higher

F800.CCC
Revision C





  • 24x 1 GbE RJ45 Ethernet ports
1U Rackmount
  • 8.0.1 or higher


F800.CCF
Revision C





  • 16x 1 GbE RJ45 Ethernet ports
  • 8x 1 GbE Optical Fiber SFP
1U Rackmount
  • 8.0.1 or higher

F800.CCE
Revision C





  • 16x 1 GbE RJ45 Ethernet ports
  • 4x 10 GbE Optical Fiber SFP+
1U Rackmount
  • 8.0.1 or higher

F900.CCC
Revision B





  • 32x 1 GbE RJ45 Ethernet ports

Optional network modules available.

1U Rackmount
  • 8.0.1 or higher

F900.CCE
Revision B





  • 16x 1 GbE RJ45 Ethernet ports
  • 8x 10 GbE Optical Fiber SFP+

Optional network modules available.

1U Rackmount
  • 8.0.1 or higher

F900.CFE
Revision B





  • 8x 1 GbE RJ45 Ethernet ports
  • 8x 1 GbE Optical Fiber SFP
  • 8x 10 GbE Optical Fiber SFP+

Optional network modules available.

1U Rackmount
  • 8.0.1 or higher

F900.CFEQ
Revision B





  • 8x 1 GbE RJ45 Ethernet ports
  • 8x 1 GbE Optical Fiber SFP
  • 4x 10 GbE Optical Fiber SFP+
  • 2x 40 GbE QSFP+

Optional network modules available.

1U Rackmount
  • 8.0.1 or higher


F1000.CE0
Revision A





  • 16x 1 GbE RJ45 Ethernet ports
  • 4x 10 GbE Optical Fiber SFP+

4 NIC module bays can load different replaceable Barracuda network modules.

2U Rackmount
  • 8.0.1 or higher

F1000.CE2
Revision A





  • 32x 1 GbE RJ45 Ethernet ports
  • 8x 10 GbE Optical Fiber SFP+

4 NIC module bays can load different replaceable Barracuda network modules.

2U Rackmount
  • 8.0.1 or higher


F1000.CFE
Revision A





  • 16x 1 GbE RJ45 Ethernet ports
  • 16x 1 GbE Optical Fiber SFP
  • 8x 10 GbE Optical Fiber SFP+

4 NIC module bays can load different replaceable Barracuda network modules.

2U Rackmount
  • 8.0.1 or higher

F1000.CFEQ
Revision A





  • 16x 1 GbE RJ45 Ethernet
  • 16x 1 GbE Optical Fiber SFP
  • 6x 10 GbE Optical Fiber SFP+
  • 2x 40 GbE QSFP+

4 NIC module bays can load different replaceable Barracuda network modules.

2U Rackmount
  • 8.0.1 or higher

F1000.CE0
Revision B





  • 16x 1 GbE RJ45 Ethernet ports
  • 4x 10 GbE Optical Fiber SFP+

4 NIC module bays can load different replaceable Barracuda network modules.

2U Rackmount
  • 8.0.1 or higher

F1000.CE2
Revision B




  • 32x 1 GbE RJ45 Ethernet ports
  • 8x 10 GbE Optical Fiber SFP+

4 NIC module bays can load different replaceable Barracuda network modules

2U Rackmount
  • 8.0.1 or higher

F1000.CFE
Revision B




  • 16x 1 GbE RJ45 Ethernet ports
  • 16x 1 GbE Optical Fiber SFP
  • 8x 10 GbE Optical Fiber SFP+

4 NIC module bays can load different replaceable Barracuda network modules.

2U Rackmount
  • 8.0.1 or higher

F1000.CEFEQ
Revision B




  • 16x 1 GbE RJ45 Ethernet
  • 16x 1 GbE Optical Fiber SFP
  • 6x 10 GbE Optical Fiber SFP+
  • 2x 40 GbE QSFP+

4 NIC module bays can load different replaceable Barracuda network modules.

2U Rackmount
  • 8.0.1 or higher
