Connection objects are used to rewrite the source IP address of a connection. Connection object is also used for outbound loadbalancing and failover support. A custom connection object allows you to combine loadbalancing / failover support with a custom source IP address.
Create a Custom Connection Object
- Open the Forwarding Rules page (Config > Full Config > Virtual Servers > your virtual server > Assigned Services > Firewall).
- In the left navigation click on Connections.

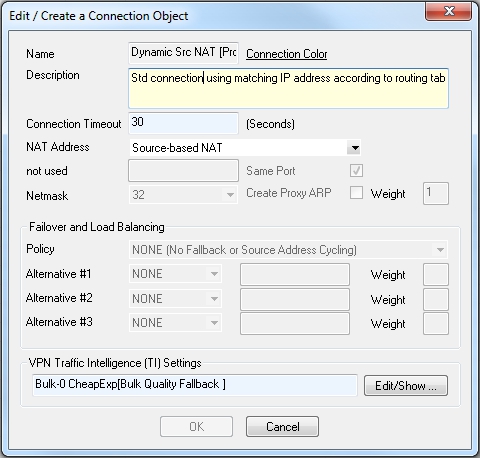

- Right-click the table and select New Connection. The Edit/Create a Connection Object window opens.
- In the Name field, enter a name for the connection object. E.g.,
- From the NAT Address list, select how the source address should be determined for your connection:
- Client | No Src NAT – Uses the source IP
- Source-based NAT – Dynamically chosen according to firewall routing tables. This is a general purpose option.
- Src NAT – 1st Srv IP (Proxyfirst) – Uses the First-IP[IP1] configured in the virtual Server Properties the firewall service is running on.
- Src NAT – 2nd Srv IP (Proxysecond) – Uses the Second-IP[IP2] configured in the virtual Server Properties the firewall service is running on.
- From Interface – Explicitly specified interface. May be used to restrict the bind address to a specific interface. Selecting Interface activates further options below and in section Firewall configuration -
- Explicit – Explicitly specified IP address. May be used to restrict the bind address to a specific address. Selecting Explicit activates further options below and in section Firewall Configuration – Service Objects – General settings – section Failover and Load Balancing:
- Same Port – Ticking this checkbox enforces to use the same client port when establishing the connection.
- Explicit IP – Here the specific IP address is to be entered.
- Create Proxy ARP – If the explicitly defined IP address does not exist locally, an appropriate ProxyARP entry may be created by selecting this checkbox.
- Network Object – section Failover and Load Balancing:
- Interface Name – Here the name of the affected interface is to be entered.
Translation Table – Source NAT for a complete subnet. In order to avoid misconfiguration, the netmasks up to 16 bits can be used. Otherwise, a Proxy ARP with 10.0.0.0/8 would "blank out" the whole internal network for example.
- Map to Network – Here the specific mapping network is to be entered.
- Netmask – Here the corresponding netmask is to be entered.
Proxy ARP – This parameter is needed by a router if the addresses live in its local network. For more information, see How to Create Proxy ARP Objects.
- Click OK .
- Click Send Changes and Activate .
You can now apply the connection object to your firewall rules. Double-click a rule´s number (or right click an existing firewall rule and select Edit Rule to open the rule configuration). From the left navigation pane, select the Object Viewer check box to drag connections objects from the Object Viewer window to the Connection Method table.
|Name of the connection object.|
|Description||Significant connection object description.|
Choose a color, in which you want the connection object to be displayed in the Firewall - Connections window.
This general option for all connection types is the timeout for trying to establish a connection. The default value is 30 seconds. Increasing this value can be useful for very protracted connection partners. Decreasing this value can be useful for faster failover mechanisms.
This parameter specifies the Bind IP. The following options are available:
Failover and Load Balancing
This parameter allows you to specify what should happen if the connection cannot be established. Especially when having multiple providers and policy routing this parameter comes handy because it allows you to specify which IP address/interface has to be used for backup reasons. Otherwise, connecting via the backup provider using the wrong IP address in conjunction with the backup provider would make routing back quite impossible. Available policies are:
Configuration examples related to multipath routing are described below in more detail in the section Barracuda NG Firewall Multipath Routing.
Here up to three Alternative IP addresses or interfaces can be configured for use with the selected policy.
Assigns a weight number to the IP address or interface. Higher numbers mean higher priority. When performing load balancing, the weight numbers represent the traffic balancing ratio of the available links. A weigh ratio of 40:20:10 means that traffic is balanced over the configured interfaces in a ratio of 4:2:1. Thus the first link will process twice as much traffic as link two and four times as much as link three.
VPN Traffic Intelligence (TI) Settings
Settings configured in this section only apply to Traffic Intelligence configuration in combination with TINA tunnel VPN technology. See Traffic Intelligence for details.
