How to Configure a Client-to-Site VPN Group Policy

  • Last updated on

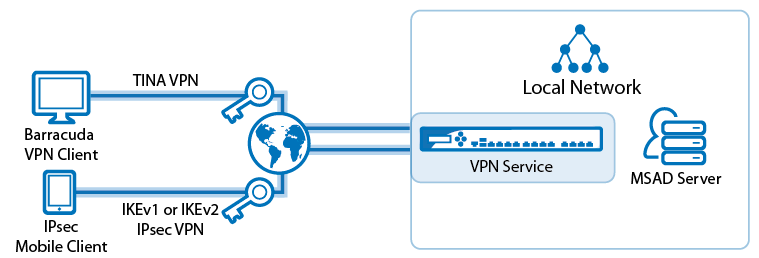

To let mobile workers securely connect to corporate information resources, create a client-to-site VPN group policy. This allows you to use one client-to-site configuration that enables both Barracuda VPN Clients and IKEv1 IPsec clients to connect. To allow Android and iOS devices to connect, you must use compatible IPSec IKEv1 settings. The client can be authenticated either through external authentication schemes, client certificates, or a combination thereof.


Supported VPN Clients

Depending on the group policy profile, you can use  the Barracuda VPN Client or any standard IPsec IKEv1 VPN client. However, only the following clients are supported:

Before You Begin

Step 1. Configure Group Policy Settings

Configure the default Group Policy settings.

  1. Go to CONFIGURATION > Configuration Tree > Box > Virtual Servers > your virtual server > Assigned Services > VPN-Service > Client-to-Site.
  2. Click Lock.
  3. Click the External CA tab and then the Group Policy tab.
  4. Click the Click here for options link.
  5. In the Server section of the Group VPN Settings window, select the Authentication Scheme. E.g., msad
  6. Configure which certificates are used. By selecting a specific certificate, all VPN group policies must use this certificate:
    • (optional) Server – Select a server certificate, or use the default Server Certificate configured in the VPN settings.
    • Server Protocol Key – Select the Service certificate.
    • (optional) Used Root Certificates Select a root certificate, or use the default Server Certificate configured in the VPN settings.
    • (optional) X509 Login Extraction FieldSelect the X509 field containing the user name.
  7. (optional) If needed, select the Preauthentication Scheme.
  8. Click OK.

    Only X.509 certificate conditions can be assigned because IPsec XAUTH authentication will not work if group patterns are defined in the External Group Condition section.

Step 2. Create a VPN Group Policy

Create a Group policy and configure the network settings for the client-to-site connections. If you want the client to send all traffic through the VPN tunnel, enter 0.0.0.0/0 as the network.

  1. Go to CONFIGURATION > Configuration Tree > Box > Virtual Servers > your virtual server > Assigned Services > VPN-Service > Client-to-Site.
  2. Click the External CA tab and then click the Group Policy tab.
  3. Right-click the table and select New Group Policy.
  4. In the Edit Group Policy window, edit the following settings:
    • Name – Enter a name for this policy.
    • Common Settings – Select the check box.
    • Statistics Name – To better allocate statistics entries, enter a name.
    • Network – Select the required client network.
    • DNS – Enter a DNS server for the clients.
    • Network Routes – Add all networks that should be reachable by the VPN clients. Enter 0.0.0.0/0 for all traffic to be sent through the client-to-site VPN.
  5.  Right click the Group Policy Condition field and select Create New Policy.

  6. In the X509 Certificate Conditions section of the Group Policy Condition window, set filters for the certificate. For example, to let everyone with a valid certificate log on, click Edit/Show to add the following condition to the Subject field: CN=*

    Certificate condition entries are case insensitive and can contain the quantification patterns ? (zero or one) and * (zero or more).

  7. Click OK.
  8. Click OK.
  9. Click Send Changes and Activate.

Step 3. (optional) Adjust Barracuda Network Access and VPN Client Settings

  1. Go to CONFIGURATION > Configuration Tree > Box > Virtual Servers > your virtual server > Assigned Services > VPN-Service > Client-to-Site.
  2. Click Lock.
  3. Click the External CA tab and then click the Group Policy tab.
  4. Double-click on the VPN group policy created in step 2.
  5. In the Barracuda tab configure:
    • Windows Security Settings
    • VPN Client Network
    • Firewall Rules
    • Login Message
    • Ciphers
  6. Click OK.

Step 4. (optional) Adjust the IPsec Phase I and II Settings

To connect to the firewall using iOS and Android clients, you must use the following IKEv1 IPsec Phase I and II settings.

  1. Go to CONFIGURATION > Configuration Tree > Box > Virtual Servers > your virtual server > Assigned Services > VPN-Service > Client-to-Site.
  2. Click Lock.
  3. Click the External CA tab and then click the Group Policy tab.
  4. Double-click on the VPN group policy created in step 3.
  5. Click the IPSec IKEv1 tab and configure the following settings:
    • IPSec IKEv1 Phase II - Settings – Clear the check box and then select Group Policy Name (Create New).
    • Encryption: AES
    • Hash MethSHA
    • DH-Group: Group2
    • Time: 3600
    • Minimum1200
    • Maximum: 4800
  6. Configure the same settings for IPsec Phase I that you selected for IPsec Phase II.
    1. Click Edit Phase I.
    2. In the Change IPSec Phase I window, specify the same settings that you selected for the IPSec Phase II - Settings :
      • Encryption: AES
      • Hash MethSHA
      • DH-Group: Group2
      • Time: 3600
      • Minimum1200
      • Maximum: 4800
    3. Click OK.
  7. In the  Edit Group Policy window, click OK.
  8. Click Send Changes and Activate.

Step 5. Add Access Rules

Add an access rule to allow the VPN clients to connect to your network. For more information, see How to Configure a Forwarding Firewall Rule for a Client-to-Site VPN.

Monitoring VPN Connections

On the VPN > Client-to-Site page, you can monitor VPN connections. The page lists all available client-to-site VPN tunnels. In the Tunnel column, the color of the square indicates the status of the VPN:

  • Blue – The client is currently connected.
  • Green – The VPN tunnel is available, but currently not in use.
  • Grey – The VPN tunnel is currently disabled. To enable the tunnel, right-click it and select Enable Tunnel.

For more information about the VPN > Client-to-Site page, see VPN Tab.

Troubleshooting

To troubleshoot VPN connections, see the /yourVirtualServer/VPN/VPN and /yourVirtualServer/VPN/ike log files. For more information, see Logs Tab.
