FSC Firmware Update

  • Last updated on

The Control Center manages the distribution and update process for FSC firmware updates. The admin must first update the firmware package to the Control Center and select the FSCs from the list. The Control Center then distributes the file. Afterwards, the admin can trigger the update process and monitor the progress of the update.

Step 1. Verify the Compatibility of the FSC with the Control Center Firmware

The following table shows the compatibility between the Control Center and FSC firmware versions. Upgrade the Control Center before updating the managed FSCs.

For more information, see Updating F-Series Firewalls and Control Centers.

FSC System Version

Control Center Version


Step 2. Download the Update Package from the Download Portal

Download the update package from the Barracuda Download Portal:

Step 3. Import the Update Package into the Control Center

Import the update file to the Control Center.

  1. Log into the Control Center.
  2. Go to CONTROL > Firmware Update.

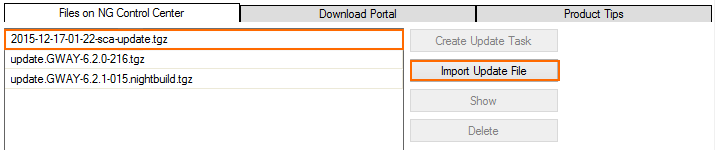

  3. In the lower half of the screen, click on the Files on Control Center tab.
  4. Click Import Update File and select the update package you downloaded in Step 1.

The file is copied to the Control Center and displayed in the Files on Control Center tab

Step 4. Send the Update Package to the Systems

  1. On the Firmware Update page, select the FSCs you want to update.
  2. In the Files on Control Center tab, select the update package.
  3. Click Create Update Task. The New Update Task window opens.
  4. (optional) Select the Scheduling Mode.
  5. Click OK.

The update packages are now copied to the selected remote systems. Go to CONTROL > Update Tasks to monitor the progress.

Bild 009.png

Step 5. Execute the Update Package

After the update package has been copied to the FSC, trigger the update.

  1. Go to CONTROL > Update Tasks.
  2. In the  column, a green icon is displayed, verifying that the update package was sent successfully.
  3. Right-click the selected FSC and select Perform Update.
  4. In the Schedule Task window, select Immediate Execution from the Scheduling Mode list and click OK.

Wait for the update to finish.

Secure Connectors will reboot after the update has been applied.

Step 6. Migrate the Configuration Version of the Cluster

If you are updating to a new major version, you must migrate the cluster version after the update has completed.

Update the Clusters Individually
  1. Open the cluster you just updated (CONFIGURATION > Configuration Tree > Multi-Range > your range > your cluster).
  2. Right-click on the cluster and select Lock.
  3. Right-click on the cluster and select Migrate Cluster.
  4. Select the new Release version.
  5. Click OK.
  6. Click Activate
Update all the Clusters in a Range

If all clusters in the range are on the same firmware version, you can migrate all clusters simultaneously.

  1. Open the range containing the clusters you just updated (CONFIGURATION > Configuration Tree > Multi-Range > your range).
  2. Right-click on the range and select Lock.
  3. Right-click on the range and select Migrate Range.
  4. Select the new Release version.
  5. Click OK.
  6. Click Activate.

Troubleshooting / Logs

To troubleshoot updates on the FSC you must enable persistent logging and review the /var/phion/logs/installUpdate.log file. Do not permanently enable persistent logging, as it impacts the lifetime of the sdcard.
