How to Configure a TINA Site-to-Site VPN Tunnel When One Side is Using a Dynamic IP

  • Last updated on

In this example setup, two CloudGen Firewalls are connected via a TINA site-to-site VPN tunnel over the Internet. The firewall on the local site is using a WAN connection with a static public IP address. The remote firewall uses a dynamic WAN connection. Since the dynamic IP address of the remote firewall is volatile and can change the remote firewall must be configured as the active VPN endpoint of the VPN tunnel.


The following table refers to the image and serves as an example. You must adjust the settings to your specific network and host IP values.

 Local FirewallRemote Firewall
External IP address62.99.0.21/32 (static)Dynamic via DHCP
Local Networks10.0.10.0/2510.0.80.0/24
Remote Networks10.0.80.0/2410.0.10.0./25
State of Tunnel ServerPassiveActive

Step 1. Configure the TINA Site-to-Site VPN Tunnel on the Local Firewall

Traffic coming from the internal network 10.0.80.0/24 behind the remote firewall is forwarded through the TINA site-to-site VPN tunnel to the internal network 10.0.10.0/25 behind the local firewall. Since the public IP address of the remote firewall is dynamic, the Call Direction of the local firewall must be set to Passive.

  1. Log into the local firewall.
  2. Go to CONFIGURATION > Configuration Tree > Box > Virtual Servers > your virtual server > Assigned Services > VPN > Site to Site.
  3. Click Lock.
  4. Click the TINA Tunnels tab.
  5. Right-click the table, and select New TINA tunnel.
  6. In the Name field, enter the name for the new VPN tunnel.
  7. (IPv6 only). Select IPv6.
  8. Configure the Basic TINA tunnel settings. For more information, see TINA Tunnel Settings.
    • Transport – Select the transport encapsulation: UDP (recommended), TCP, TCP&UDP, ESP, or Routing.
    • Encryption – Select the encryption algorithm: AESAES256, 3DESCASTBlowfish, DES, or Null.
    • Authentication – Select the hashing algorithm: MD5, SHA, SHA256, SHA512, NOHASH, RIPEMD160, or GCM.
    • (optional) Compression – Select yes to enable VPN compression. Do not use in combination with WAN Optimization.
      (optional) Use Dynamic Mesh / Dynamic Mesh Timeout – For more information,  see Dynamic Mesh VPN Networks.

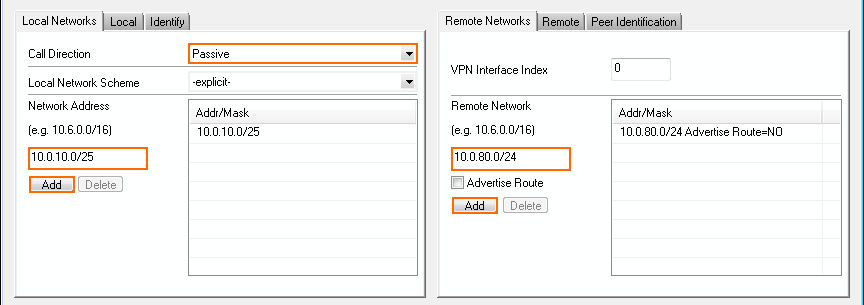

  9. Configure the Local Networks tab:
    • Call Direction – Set to Passive so that the local firewall listens for incoming VPN tunnel requests.
    • Networks Address – Enter the Network Address(es) of your local network(s) in CIDR-notation and click Add. (i.e. 10.0.10.0./25)
  10. Configure the Remote Networks tab:
    • Remote Network – Enter the local network address(es) of the remote peer in CIDR-notation and click Add. (i.e. 10.0.80.0/24)

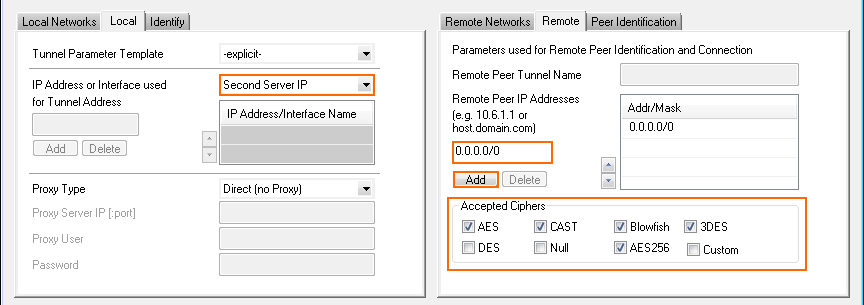

  11. Click the Local tab, and configure the IP address or Interface used for Tunnel Address:
    • First Server IPFirst IP address of the virtual server the VPN service is running on.
    • Second Server IPSecond IP address of the virtual server the VPN service is running
    • Explicit – For each IP address, click + and enter the IPv4 addresses in the Explicit Service IPs list.
  12. Configure the Remote tab:
    • Remote Peer IP Addresses – Enter 0.0.0.0/0 for tunnel requests coming from the second firewall via the Internet and click Add.
    • Accepted Ciphers – To use a cipher, the list must match the Encryption settings previously configured.
  13. Click the Identity tab.
  14. From the Identification Type list, select Public Key.

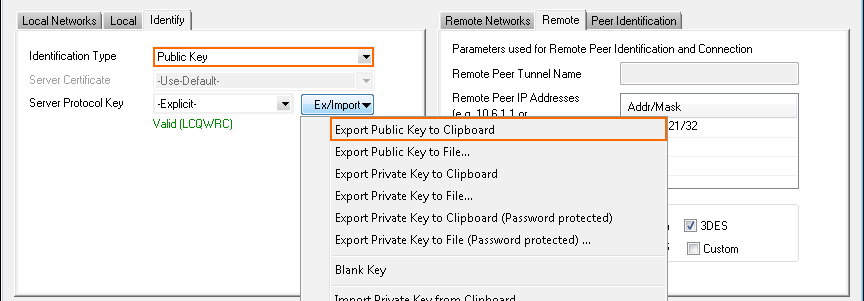

  15. Click Ex/Import and select Export Public Key to Clipboard.
  16. Click OK.
  17. Click Send Changes and Activate.

Step 2. Configure the TINA Site-to-Site VPN Tunnel on the Remote CloudGen Firewall

Since the local firewall's tunnel is working in passive mode, only the remote firewall can initiate a tunnel connection. Therefore, the Call Direction must be set to Active.

  1. Log into the remote firewall.
  2. Go to CONFIGURATION > Configuration Tree > Box > Virtual Servers > your virtual server > Assigned Services > VPN > Site to Site.
  3. Click Lock.
  4. Click the TINA Tunnels tab.
  5. Right-click the table, and select New TINA tunnel.
  6. In the Name field, enter the name for the new VPN tunnel.
  7. (IPv6 only). Select IPv6.
  8. Configure the Basic TINA tunnel settings. For more information, see TINA Tunnel Settings.
    • Transport – Select the transport encapsulation: UDP (recommended), TCP, TCP&UDP, ESP, or Routing.
    • Encryption – Select the encryption algorithm: AESAES256, 3DESCASTBlowfish, DES, or Null.
    • Authentication – Select the hashing algorithm: MD5, SHA, SHA256, SHA512, NOHASH, RIPEMD160, or GCM.
    • (optional) Compression – Select yes to enable VPN compression. Do not use in combination with WAN Optimization.
      (optional) Use Dynamic Mesh / Dynamic Mesh Timeout – For more information, see Dynamic Mesh VPN Networks.
  9. Configure the Local Networks tab:
    • Call Direction – Set to Active so that the firewall can initiate a VPN tunnel after being connected to the Internet via DHCP.
    • Networks Address – Enter the Network Address(es) of your local network(s) in CIDR-notation and click Add. (i.e. 10.0.80.0./24)
  10. Configure the Remote Networks tab:
    • Remote Network – Enter the local network address(es) of the remote peer in CIDR-notation and click Add. (i.e. 10.0.10.0/25)
  11. Click the Local tab, then configure:
    • Tunnel Parameter Template – Select explicit.
    • IP address or Interface used for Tunnel AddressThe firewall must do a routing table lookup to determine the IP address.

  12. Configure the Remote tab:
    • Remote Peer IP Addresses – Enter the point of entry of the first firewall, and click Add. (i.e., 62.99.0.21).
    • Accepted Ciphers – To use a cipher, the list must match the Encryption settings configured in Step 8.
  13. Click on the Peer Identification tab.
  14. Click Ex/Import and select Import from Clipboard.
  15. Click the Identity tab.
  16. From the Identification Type list, select Public Key.
  17. Click Ex/Import and select Export Public Key to Clipboard.
  18. Click OK.
  19. Click Send Changes and Activate.

Step 3. On the Local Firewall, Import the Public Key from the Remote Firewall

  1. Log into the local firewall.
  2. Go to CONFIGURATION > Configuration Tree > Box > Virtual Servers > your virtual server > Assigned Services > VPN-Service > Site to Site .
  3. Click Lock.
  4. Open the configuration for the TINA site-to-site tunnel created on the first firewall.
  5. Click the Peer Identification tab.
  6. Click Ex/Import and select Import from Clipboard.
  7. Click OK.
  8. Click Send Changes and Activate.

Access Rules

You must create Pass access rules on both systems to allow traffic between the two peers. For more information, see How to Create Access Rules for Site-to-Site VPN Access.
