Barracuda CloudGen Firewall

How to Configure VPN Access via a Dynamic WAN IP Address

  • Last updated on

Services running on a firewall cannot be configured to listen on dynamic IP addresses on the box layer of the Barracuda CloudGen Firewall. To use a VPN service on a Barracuda CloudGen Firewall with dynamic WAN connections, configure the firewall to use a localhost IP address (127.0.0.X), configure the VPN service to listen on the DCHP device, and adjust the host firewall rule to use the service IP. Alternatively, you can configure the VPN service to use the localhost IP address as a listening IP and create an app redirect access rule to redirect all incoming VPN traffic to the local VPN service. For IPsec, you can configure the VPN service to create a listener on every available IP address, making the app redirect access rule unnecessary.

Step 1. Configure VPN Service Listening IP on the Firewall

Verify that services running on the box can use 127.0.0.9 as a listening IP address.

  • Go to CONFIGURATION > Configuration Tree > Box > Network.

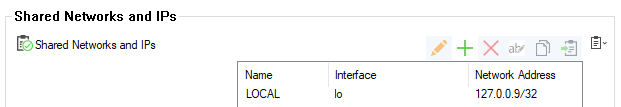

  • Scroll down to the Shared Networks and IPs section and make sure that the IP address is listed under Shared Networks and IPs.



If there is no local address configured, add the shared network.

  1. Go to CONFIGURATION > Configuration Tree > Box > Network.
  2. In the Shared Networks and IPs section, click +. The Shared Networks and IPs window opens.
  3. Enter a name for the new shared network.
  4. Click OK. The Shared Networks and IPs <your shared network name> window opens.
  5. For Interface, select Other and enter lo for the local interface on which the shared network must be reachable.
  6. Enter the Network Address  127.0.0.9/32 for the network on the selected interface.
  7. Next to Shared IPs in this Network, click +. The Shared IP Address Configuration window opens.
  8. In the IP Address field, enter 127.0.0.9
  9. For Alias for this IP, select First IP.
  10. Set Responds to Ping to yes.
  11. Click OK.
  12. For Trust Level, select Trusted.
  13. Click OK. The shared IP address is added to the list of Shared IPs in this Network.
  14. Click OK
  15. Click Send Changes and Activate.
Step 2. Configure the Listener on the VPN Service

Configure the VPN service to listen on the DHCP device.

  1. Go to CONFIGURATION > Configuration Tree > Box > Assigned Services > VPN-Service > Service Properties.
  2. Click Lock.
  3. From the Listening IP drop-down menu, select Device.
  4. Next to Listening Device, click + and enter dhcp.
  5. Click Send Changes and Activate.

Alternatively, you can configure the VPN service to use the 127.0.0.9 listening IP address configured in Step 1 as a service IP address. In this case, you must also create an app redirect rule instead of adjusting the host rule.

  1. Go to CONFIGURATION > Configuration Tree > Box > Assigned Services > VPN-Service > Service Properties.
  2. Click Lock.
  3. From the Service Availability drop down, select Explicit.
  4. Click + and add the IP address 127.0.0.9 to the  Explicit Service IPs table.
  5. Click Send Changes and Activate

Step 3. Configure the Host Firewall Rule

If the VPN service is configured to listen on the DHCP device, adjust the OP-SRV-VPN host firewall rule to use the service IP address.

  1. Go to Firewall > Host Rules.
  2. Edit the OP-SRV-VPN host firewall rule. Click Lock.
  3. From the Destination  drop down list, select All Firewall IPs.
  4. Click OK.
  5. Click Send Changes and Activate.
Step 3. Create a VPN Tunnel

Create a VPN TINA tunnel. On the local firewall, under the Local tab, select Explicit List (ordered) as the IP Address used for Tunnel Address. Select Explicit List (ordered) and enter 0.0.0.0 as the listening IP address.

For more information, see How to Create a TINA VPN Tunnel between CloudGen Firewalls.

Step 4. Create an App Redirect Access Rule

If the VPN service is configured to use the 127.0.0.9 listening IP address as service IP address, create an access rule instead of adjusting the host rule. Create an app redirect rule to redirect all incoming VPN traffic on the dynamic WAN interface to the VPN service:

  • Action – Select App Redirect
  • Source – Select Internet.
  • Service – Select NGF-OP-VPN.
  • Destination – Select the network object for your dynamic WAN connection. E.g., xDHCP-LocalIP1 or xDSL-LocalIP1.
  • Redirection – Enter 127.0.0.9.


For more information, see How to Create an App Redirect Access Rule.

All incoming VPN traffic is now redirected to the VPN service listening on 127.0.0.9.

IPsec VPN Service Listener on All IP Addresses

When using IPsec, configure the VPN service to listen on all available IP addresses including all dynamic IP addresses. No additional access rules are required.

This parameter is limited to IPsec VPN configurations.

Configure the VPN Service IP
  1. Go to CONFIGURATION > Configuration Tree > Box > Assigned Services > VPN-Service > VPN Settings.
  2. Click Lock.
  3. In the left navigation bar, click IPSec.
  4. Enable Use IPSec dynamic IPs.
  5. Click  Send Changes and Activate.
Create a VPN Tunnel

Create a VPN IPsec tunnel. For IKEv1: On the local firewall, in the Local Networks settings, enter 0.0.0.0 or ::0 as the Local IKE Gateway. For IKEv2: On the local firewall, under the Network Local tab, enter 0.0.0.0 as the Local Gateway

For more information, see How to Configure a Site-to-Site IPsec IKEv1 VPN Tunnel and How to Configure a Site-to-Site IPsec IKEv2 VPN Tunnel.

Verify the Listening IP Addresses for the VPN Service

Open the CONTROL > Resources page and double-click either on the VPN service process (e.g., S1_ARVPN) for TINA tunnels, or on the ike3 process for IPsec tunnels. In the Info Dialog window, check to see if the VPN service is listening on the IP addresses you configured above (e.g., 127.0.0.1 or 0.0.0.0/0).

VPN service


ike3 process with Use dynamic IPs enabled


DynDNS

Dynamic WAN connections may change the public IP address regularly. Configure DynDNS to continuously update a DynDNS hostname to always resolve to the current public IP address used by the CloudGen Firewall. VPN clients then use the DynDNS hostname to connect to the CloudGen Firewall VPN service.
