Step 2 - Configure Microsoft 365 for Inbound and Outbound Mail

  • Last updated on

You can configure Microsoft 365 with Email Gateway Defense as your inbound and/or outbound mail gateway.

If you make changes to the settings, allow a few minutes for the changes to take effect.

Microsoft 365 IP addresses and user interfaces can change; refer to Microsoft documentation for configuration details.


You can specify Email Gateway Defense as an inbound mail gateway through which all incoming mail for your domain is filtered before reaching your Microsoft 365 account. Email Gateway Defense filters out spam and viruses, then passes the mail on to the Mirosoft 365 mail servers. Use the Configure Inbound Mail Flow instructions below to configure.

You can also specify Email Gateway Defense as the outbound mail gateway through which all mail is sent from your domain via your Microsoft 365 account to the recipient. As the outbound gateway, Email Gateway Defense processes the mail by filtering out spam and viruses before final delivery. By configuring Microsoft 365 as described in Configure Outbound Mail Flow below, you instruct the Microsoft 365 mail servers to pass all outgoing mail from your domain to Email Gateway Defense (the gateway server).

Step 1. Launch the Email Gateway Defense Setup Wizard

Before you launch the wizard, verify you have the following:

  • Microsoft 365 admin credentials
  • Credentials to run a PowerShell script or terminal to manually execute PowerShell scripts

Note that you cannot reopen the wizard after you have completed the wizard. if you have started the wizard but did not complete it, log into Barracuda Cloud Control, select Email Gateway Defense on the left side. In the top banner, click Set Up Now to relaunch the wizard.

The setup wizard includes steps to identify your email server, add MX records, and remove MX records. Each of the domains where you want to filter email must be verified by Email Gateway Defense for proof of ownership; Email Gateway Defense does not process email for a domain until the verification process is complete.

Note that after verifying your domain, any mail sent to your domain from another Barracuda Email Gateway Defense customer will be processed normally by your Email Gateway Defense account and not delivered via MX records.

  1. Log into Barracuda Cloud Control. If this is your first time launching the Email Gateway Defense setup wizard, you will be redirected to the Barracuda Trials Hub page. Click Set Up under Email Gateway Defense.


    Alternatively, if you have started the setup wizard but did not complete it, after logging into Barracuda Cloud Control, select Email Gateway Defense on the left side. In the top banner, click Set Up Now to launch the setup wizard.

    The Email Gateway Defense wizard launches.

  2. Select the Region for your data center. Then click Confirm region.

    After you select your region, you cannot change it.


  3. Enter a valid email address from the email server domain you want to protect with Email Gateway Defense. Click Detect email server.

  4. The system automatically auto-fills your destination mail server. If this is not the correct server, click Edit, enter the correct details, and then click Update.

  5. After you have determined that the settings are correct, click Verify server


    Note that mail servers can take up to 48 hours to be discoverable for new domains.

  6. Once your email server is verified, a green check mark greeCheckMark.pngwill appear at Step 1 and the Status will show greeCheckMarkVerified.png. You can now move on to Step 2 Add new MX records.
  7. To add new MX records:
    1. Log into your DNS hosting account.
    2. Add the primary and backup MX records shown in the Add new MX records section. Instructions for your DNS hosting provider will vary; you can use search terms such as add, edit, manage, or MX records.
    3. Add the MX records with a low priority, for example, 99. Adding the new MX records to your existing list should look similar to this:


      After updating your MX records, allow at least 24-48 hours before completing the next step to allow time for your changes to propagate

    4. Verify that the new Email Gateway Defense MX records have been added by clicking on the Verify records button.

    5. Once your MX records are added, a green check mark greeCheckMark.pngwill appear at Step 2 and the Status will show greeCheckMarkVerified.png. You can now move on to Step 3 Remove old MX records.

  8. To remove old MX Records:
    1. Log into your DNS hosting account.
    2. Remove the existing MX records shown in the Remove old MX records section. Instructions for your DNS hosting provider will vary; you can use search terms such as add, edit, manage, or MX records.

      After updating your MX records, allow at least 24-48 hours before completing the next step in the setup wizard to allow time for your changes to propagate.

    3. Verify that your non-Barracuda Networks MX records have been removed by clicking on the Verify update button.
    4. Once your MX records are removed, a green check mark greeCheckMark.pngwill appear at Step 3 and the Status will show greeCheckMarkVerified.png

  9. After you have successfully completed all the steps in the Email Gateway Defense setup wizard, click the Complete setup button. To exit the wizard and come back at a later time, click Save & exit

Step 2. Add Additional Email Domains (Optional)

You configured your primary email domain in Step 3 of the wizard, above.
Use the steps in the following section if you want to protect additional domains with Email Gateway Defense. If you are only protecting one domain, continue below with Step 3.

Obtain the hostname:
  1. Log into the Microsoft 365 admin center.
  2. In the left pane, click Settings > Domains.
  3. In the Domains table, click on your domain.
  4. Take note of the hostname. This is the address of your destination mail server, for example, cudaware-com.mail.protection.outlook.com
Enter the hostname:

Barracuda Networks recommends using a hostname rather than an IP address so that you can move the destination mail server and update DNS records without making changes to the Email Gateway Defense configuration. This address indicates where Email Gateway Defense should direct inbound mail from the Internet to your Microsoft 365 Exchange server. For example, your domain displays to the Internet as: bess-domain.mail.protection.outlook.com

  1. Log into the Barracuda Cloud Control as administrator. In the left panel, click Email Gateway Defense. Select the Domains tab, then click Add Domain.
  2. Enter the domain name and destination mail server hostname obtained from your Microsoft 365 account:
  3. Click Add Domain; the Domain Settings page displays, listing the new domain.
  4. Verify that the domain is yours. Follow the instructions in How to Set Up MX Records for Domain Verification. Make sure that you see that the domain is successfully verified, then return to this page.

Repeat these steps, as needed, for additional Microsoft 365 domains before continuing with Step 3 below.

Step 3. Create Transport Rule to Bypass Spam Filtering

Barracuda Networks recommends using powershell commands to create a transport rule to bypass spam filtering.

  1. Install Exchange Online module.
    • If you have already installed Exchange Online module, proceed to the next step.
    • To install Exchange Online module, open Windows PowerShell as an administrator and enter the following command:
      Install-Module -Name ExchangeOnlineManagement
  2. Connect to Exchange Online Powershell and log in with your Microsoft 365 administrator account using the following command:
  3. Find the correct IP range based on the region selected when setting up your Barracuda Networks instance. Refer to the Email Gateway Defense IP Ranges for the IP ranges corresponding to your region.
  4. After you connect to Exchange Online PowerShell, run the appropriate PowerShell script based on your region:

    PowerShell Script for the Australia Region
    New-TransportRule -Name "Barracuda spam bypass" -SenderIpRanges 3.24.133.128/25 -SetSCL -1 -Enabled $true -Priority 0
    PowerShell Script for the Canada Region
    New-TransportRule -Name "Barracuda spam bypass" -SenderIpRanges 15.222.16.128/25 -SetSCL -1 -Enabled $true -Priority 0
    PowerShell Script for the German Region
    New-TransportRule -Name "Barracuda spam bypass" -SenderIpRanges 35.157.190.224/27 -SetSCL -1 -Enabled $true -Priority 0
    PowerShell Script for the UK Region
    New-TransportRule -Name "Barracuda spam bypass" -SenderIpRanges 35.176.92.96/27 -SetSCL -1 -Enabled $true -Priority 0
    PowerShell Script for the US Region
    New-TransportRule -Name "Barracuda spam bypass" -SenderIpRanges 209.222.80.0/21 -SetSCL -1 -Enabled $true -Priority 0


Alternatively, you can use the Microsoft 365 admin center to create a transport rule to bypass spam filtering.

  1. Log into the Microsoft 365 admin center, and go to Admin centers > Exchange.

  2. In the left pane, click mail flow, and click rules.
  3. Click Add a rule, and select Create a new rule:
  4. In the new rule page, enter a Name to represent the rule.
  5. From the Apply this rule if drop-down menus, select The sender and IP address is in any of these ranges or exactly matches.
  6. In the specify IP address ranges page, enter the IP address/range for the Sender (Email Gateway Defense). Refer to the IP addresses listed in Email Gateway Defense IP Ranges
  7. From Do the following drop-down menus, select Modify the message properties and set the spam confidence level (SCL).


  8. Click Next.
  9. For Set rule settings, leave the default options and click Next.
  10. Review the rule conditions, then click Next.
  11. Click Next, then click Finish to create the transport rule.
  12. When the rule is finished creating, click Done.
  13. Click on the new created rule, found at the bottom of the mail flow rules.
  14. Enable the rule now. By default, your newly created rule is disabled.
  15. Click Edit rule settings.
  16. In the Priority field, type 0.
  17. Click Save, then click Done.

Step 4. Deploy Partner Connector

The steps in this section enhance the security of the connection between Email Gateway Defense and Microsoft 365. Creating a partner connector will allow you to enforce security policies to ensure that all inbound email originates from Barracuda's servers.

Create Inbound Connector

To get started, create your inbound connector.

  1. Install Exchange Online module.
    • If you have already installed Exchange Online module, proceed to the next step.
    • To install Exchange Online module, open Windows PowerShell as an administrator and enter the following command:
      Install-Module -Name ExchangeOnlineManagement
  2. Connect to Exchange Online Powershell and log in with your Microsoft 365 administrator account using the following command:
  3. Find the correct IP range based on the region selected when setting up your Barracuda Networks instance. Refer to the Email Gateway Defense IP Ranges for the IP ranges corresponding to your region.
  4. After you connect to Exchange Online PowerShell, run the appropriate PowerShell script based on your region:

    PowerShell Script for the Australia Region
    New-InboundConnector -ConnectorType Partner -Name "Barracuda Inbound Connector" -RequireTls $true -SenderDomains * -SenderIPAddresses 3.24.133.128/25
    PowerShell Script for the Canada Region
    New-InboundConnector -ConnectorType Partner -Name "Barracuda Inbound Connector" -RequireTls $true -SenderDomains * -SenderIPAddresses 15.222.16.128/25
    PowerShell Script for the German Region
    New-InboundConnector -ConnectorType Partner -Name "Barracuda Inbound Connector" -RequireTls $true -SenderDomains * -SenderIPAddresses 35.157.190.224/27
    PowerShell Script for the UK Region
    New-InboundConnector -ConnectorType Partner -Name "Barracuda Inbound Connector" -RequireTls $true -SenderDomains * -SenderIPAddresses 35.176.92.96/27
    PowerShell Script for the US Region
    New-InboundConnector -ConnectorType Partner -Name "Barracuda Inbound Connector" -RequireTls $true -SenderDomains * -SenderIPAddresses 209.222.80.0/24,209.222.81.0/24,209.222.82.0/24,209.222.83.0/24,209.222.84.0/24,209.222.85.0/24,209.222.86.0/24,209.222.87.0/24
Validate Mail Flow (Optional)

The new inbound partner connector you just created will be used to enforce restrictions on your Microsoft tenant to prevent emails from bypassing your Barracuda Networks gateway defenses. Prior to enforcing those restrictions, it is important to validate your inbound mail flow to ensure there are no external senders that are sending emails directly to your Microsoft tenant.

For instructions on how to validate mail flow, see Validating Mail Flow Before Restricting Access.

Restrict Access

Time Requirement

Make sure to wait at least 24 hours after updating MX records before enabling tenant restrictions. This will avoid any potential disruptions to mail delivery due to outdated MX records.


To update your Barracuda partner connector to require inbound mail to flow through Email Gateway Defense, connect to Exchange Online and run the following PowerShell command:

Set-InboundConnector -Identity "Barracuda Inbound Connector" -RestrictDomainstoIPAddresses $true

Step 5. Configure Sender Policy Framework for Outbound Mail

To ensure Barracuda Networks is the authorized sending mail service of outbound mail from Email Gateway Defense, add the following to the Sender Policy Framework (SPF) record INCLUDE line of the SPF record for your sending mail server for each domain sending outbound mail. Select the relevant SPF INCLUDE based on the region you selected for your Barracuda Networks instance:

AU (Australia)
include:spf.ess.au.barracudanetworks.com -all
CA (Canada)
include:spf.ess.ca.barracudanetworks.com -all
DE (Germany)
include:spf.ess.de.barracudanetworks.com -all
UK (United Kingdom)
include:spf.ess.uk.barracudanetworks.com -all
US (United States)
include:spf.ess.barracudanetworks.com -all

For more information, see Sender Authentication.

  • If you have an SPF record set up for your domain, edit the existing record, and add the following to the INCLUDE line for each domain sending outbound mail based on your Barracuda Networks instance. For example: include:spf.ess.barracudanetworks.com -all
  • If you do not have an SPF record set up for your domain, use the following value to create a TXT record that creates a HARD Fail SPF for your domain based on your Barracuda Networks instance. For example: v=spf1 include:spf.ess.barracudanetworks.com -all

Step 6. Configure User Accounts and User Lists

Follow the steps in the appropriate links, based on your organization's setup.

How to Configure User Authentication Using LDAP

How to Configure User Authentication with Azure AD

Step 7. Configure Outbound Mail

If you have more than one domain on your tenant (e.g., x.com and y.com) and you only want to filter one of the domains (like x.com), refer to How to Configure Microsoft 365 to Scan Only Selected Domains Outbound. The instructions in this section below describe how to filter for all domains for outbound mail.

If you have multiple outgoing account domains for Microsoft 365, you only need to make one send connector in Microsoft 365. You can use any one of the outbound smarthosts to make the send connector.

Each of your domains that you want to be able to send email must be added to Email Gateway Defense. Be sure to add all of your accepted Microsoft 365 domains into Email Gateway Defense before configuring outgoing email in this section.

Outbound Groups must be enabled on your Email Gateway Defense account. Contact Barracuda Networks Technical Support to request that Outbound Groups be enabled on your Email Gateway Defense account.

  1. Log into your Barracuda Cloud Control account. On the left side, select Email Gateway Defense. Select the Domains tab. For the appropriate domain, click Edit.
  2. On the Domain Settings page, locate the Outbound Smarthost Configuration section and make note of the Hostname:
  3. Log into the Microsoft 365 Exchange admin center, and go to Admin centers > Exchange.

  4. In the left pane, click mail flow, and click connectors.
  5. Click the + symbol, and use the wizard to create a new connector.

  6. From the From drop-down menu, select Office 365, and from the To drop-down menu, select Partner organization:

  7. Enter a Name and (optional) Description to identify the connector:

  8. Click Next. Select Only when email messages are sent to these domains, click the + symbol, and enter an asterisk ( * ) in the add domain field.

  9. Click OK, and click Next. Select Route email through these smart hosts, and click the + symbol.

  10. Go to Email Gateway Defense, and click the Domains tab. Copy your outbound hostname from the MX records, and enter it in the add smart host page:

  11. Click Save, and click Next. Use the default setting, Always use Transport Layer Security (TLS) to secure the connection (recommended) > Issued by Trusted certificate authority (CA):
  12. Click Next. In the confirmation page, verify your settings and click Next. Microsoft 365 runs a test to verify your settings:
  13. When the verification page displays, enter a test email address, and click Validate. For this test, it is important to use an email address from outside your organization, like a gmail or yahoo email address.
    There are two parts of the validation:
    1. Test Connectivity – If this test fails, Outbound Groups is not enabled. Contact Barracuda Networks Technical Support and request that Outbound Groups be enabled on your Email Gateway Defense account.
    2. Send Test Email – If the test fails, there is no cause for concern. The test email comes from a Microsoft domain, not from your domain, so it is rejected. If you changed your domain away from onmicrosoft.com, the test should work.
  14. Click Save. Your mail flow settings are added.

Email Gateway Defense now accepts outbound traffic from Outlook 365.

  1. Log into the Microsoft 365 admin center https://admin.exchange.microsoft.com/.
  2. In the left pane, click Mail flow, and click Connectors.
  3. Click the Add a connector button, and use the wizard to create a new connector.

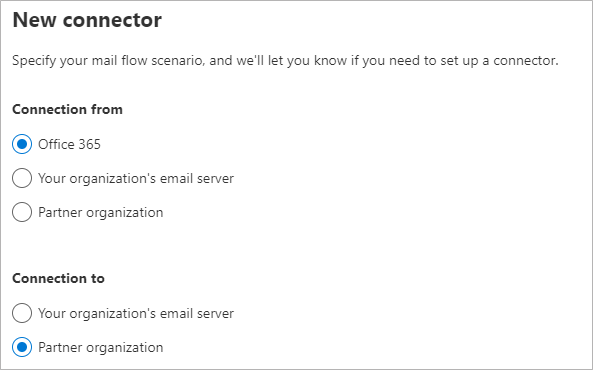

  4. For Connection from, select Office 365. For Connection to, select Partner organization.
  5. Click Next. Enter a Name and (optional) Description to identify the connector:
  6. Click Next. Select Only when email messages are sent to these domains. Enter an asterisk ( * ) in text box field and click the blue  + .
  7. Click Next. Select Route email through these smart host, and click the + symbol.
    1. Go to Email Gateway Defense, and click the Domains tab. Copy your outbound hostname from the MX records, and enter it in the add smart host page:

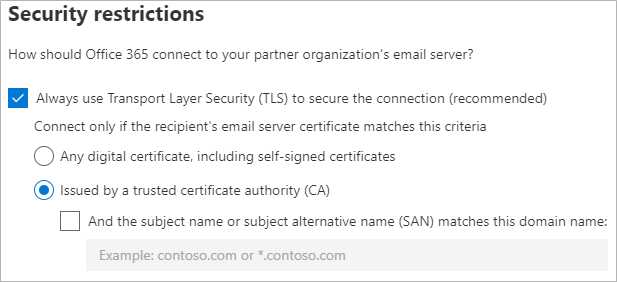

  8. Click Next. Use the default settings for the Security restrictions: Always use Transport Layer Security (TLS) to secure the connection (recommended) > Issues by Trusted certificate authority (CA):
  9. Enter an external email address to validate the connector. For this test, it is important to use an email address from  outside your organization , like a gmail or yahoo email address. Click Validate
    There are two parts of the validation:
    1. Test Connectivity – If this test fails, Outbound Groups is not enabled. Contact Barracuda Networks Technical Support and request that Outbound Groups be enabled on your Email Gateway Defense account.
    2. Send Test Email – If the test fails, there is no cause for concern. The test email comes from a Microsoft domain, not from your domain, so it is rejected. If you changed your domain away from onmicrosoft.com, the test should work. Note that you might still receive the email even if the test failed.
  10. Once the validation process is complete, click Next. Review your settings and then click Create connector.

Email Gateway Defense now accepts outbound traffic from Outlook 365.

Step 8. Disable RTF (Rich Text Format) (Optional)

Customers sending outbound mail through Email Gateway Defense can consider disabling Rich Text Format (RTF) on their outbound external mail. When a message is formatted as Rich Text, the attachments will be formatted with TNEF, a Microsoft proprietary encoding that can be configured at the client or organization level. RTF refers to the message format and TNEF refers to the attachment format. RTF encoding can cause issues with attachments converting to winmail.dat files which can only be read by other Outlook clients. This can cause problems for outbound content/DLP policies that examine attachments. For example, if an end user sends an email with a PDF attachment that contains a SSN and the email is sent with RTF encoding, Email Gateway Defense would not be able to scan the PDF and identify the SSN to apply a DLP policy. By disabling RTF at the account level, it will force all outbound external mail to be HTML encoded instead.

To disable RTF on Exchange Online and Exchange 2013 and newer, use one of the following methods.

  • Powershell Command

Set-RemoteDomain -Identity Default -TNEFEnabled $false

  • Exchange Admin Center
  1. Log into the Microsoft 365 Exchange Admin Center.
  2. In the left pane, click Mail flow > Remote domains.
  3. Edit the Default remote domain.
  4. Under Text and character set, select Never for Use rich-text format.
  5. Click save.


For additional configuration options and features, log into Email Gateway Defense web interface, and click Help.

Your deployment is now complete! Learn more about Email Gateway Defense.
