Security Awareness Training Cloud Migration
The Barracuda Security Awareness Platform will be migrating to a new cloud provider. In order to ensure there aren't any disruptions with your testing and/or training campaigns, please allow the IP address block 220.127.116.11/28 on your email security system or service.
Allow List for Campaign Emails
When you run a Security Awareness Training email campaign, emails are sent to your domain. These emails might be classified as suspicious by email security systems. To ensure that Security Awareness Training campaign emails reach their intended recipients, you may need to add Security Awareness Training campaign email domains to the Allow lists in your email security systems.
If you are not setting up with Microsoft 365 or using Barracuda Email Gateway Defense, meet with your email security system vendor or administrator to have them allow the Security Awareness Training campaign email domains or the IP addresses for the Security Awareness Training mail servers. If you decide to allow by domain, include the email server domain you select when you configure the domain.
Emails coming from standard Security Awareness Training servers to your organization will originate from one or more of the IP addresses in this address range. Allow these IP addresses for the Security Awareness Training email servers on your email security system or service:
All SMTP servers sending emails for Barracuda-supplied domains identify themselves in the Received header as
mail.spearphish.com. Barracuda recommends that you check only the
spearphish.com domain if you are allow listing by the Received header. The
spearphish.com domain should only be in the two oldest Received headers. Here is an example of Received headers:
Received: from mail.spearphish.com (3.145.232.yy) by xxx.xxx.xxx (NNN.NNN.NNN.NNN) …; Wed, 3 Feb 2022 11:15:05 +0000
yy above could be any number from
Received: from localhost (localhost [127.0.0.1]) by mail.spearphish.com (Postfix) with ESMTP id NNNNNNNNNN for <firstname.lastname@example.org>; Wed, 3 Feb 2022 05:15:05 -0600 (CST)
xxx.xxx.xxx.xxx (NNN.NNN.NNN.NNN) is the host name and IP address of the receiving mail server.
NNNNNNNNN is a numeric ESMTP id.
The message Return-Path header will be set to
reply_xxxxxxxxxx@[from domain], where
xxxxxxxxx is replaced with a random identifier and the
From domain will be replaced with one of the domains specified in the campaign’s email accounts. Note that some mail gateways and mail servers might strip the Return-Path header before it reaches the user’s mailbox. If you plan to use the Return-Path header, you must confirm that the header is not stripped before it reaches the user’s mailbox.
- 10 mail.spearphish.com (18.104.22.168, 22.214.171.124)
Please update any mail host references to use 126.96.36.199 188.8.131.52 IPs. To be safe they should include the entire bock of IP addresses:
Note: You can also configure the system to use third-party SMTP email servers for some campaigns. This is a non-standard option that requires additional allow list details.
Preventing Emails from Going to Junk Email
To prevent emails from going to the junk email in Microsoft 365:
- In Microsoft 365, open the Exchange Online Admin Center. Navigate to Protection > Spam Filter.
- Create a new spam filter. Name it something like Allow <campaign_name> domain email.
- In the Allow Lists area, locate the Allowed Sender area. Enter the From email address(es) that you use in each of your campaigns (e.g.,
- In the Applied to area, add your domain information.
- Save this filter and make it a higher priority than the default spam filter provided with Microsoft 365.
Note that you must perform these steps again for future campaigns that use different emails and domains.
There are two ways to prevent emails from going to the junk email in Office 2013.
Method 1: Safe Sender
Create a Safe Sender list and deploy it using Group Policy. Refer to the Microsoft documentation on safe senders for details.
Method 2: Completely Disable the Junk Email Folder
Use a Group Policy to set the following registry settings to completely disable the Junk email folder in each user's Outlook client:
- DWORD: Disable Antispam
- Value of 1 disables the junk filter
The Outlook Email client determines which content goes into the Junk email folder, and it is not controlled by Exchange.
Note that the Group Policy setting does not apply if your users use web mail to check their email. Refer to the next section, Disabling the Junk Email Folder in Microsoft 365, for more information.
Disabling the Junk Email Folder in Microsoft 365
You can disable the Junk email folder for all mailboxes by using PowerShell.
To disable the Junk email folder:
- Connect to your Microsoft 365 instance with PowerShell.
- Run this command to get the current setting for all users:
Get-Mailbox | get-mailboxjunkemailconfigurationWhen you initially run this script, the Enabled attribute (the status of Microsoft 365's built-in junk email processing) is reported as True for all users.
- Run this command to disable junk processing on each mailbox:
get-mailbox|set-mailboxjunkemailconfiguration -enabled $falseThis command sets the Office Junk Mail folder to False for all of the user mailboxes, including shared and service mailboxes.
Microsoft 365 Partner Connector Setup
To prevent IP addresses from being waitlisted during campaigns, all clients using Microsoft 365 must create a partner connector that includes IP addresses from the Security Awareness Training allow list document.
For your Microsoft 365 partner connector:
- Select Use the sender’s IP address and enter the following IP range:
- Ensure that Reject email messages if they aren’t sent over TLS is selected.
- Save the partner connector.
Allowing by IP Address in Microsoft 365 – Modern View
The following steps are for Microsoft 365 Modern View. See the next section for Classic View.
To set up your allow list:
- Navigate to Exchange Admin center > protection > connection filter.
- In the yellow box, click the Anti-spam settings page link.

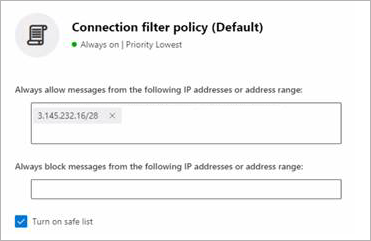

- Click Connection filter policy (Default).
Click to edit the policy.
- Type each address into the always allow messages from the following IP address or address range field.
- After you type each IP address, click on it in the gray box that appears below the field. This will add it.
- Click Save. The IP(s) will be displayed in the IP Allow list.
- To avoid spam filtering, see the Bypass Spam Filtering and the Clutter Folder section below.
Allowing by IP Address in Microsoft 365 - Classic View
The following steps are for Microsoft 365 Classic View. See the above section for Modern View.
To set up your allow list:
- Log into your Microsoft 365 Admin Portal. Under Apps, go to Admin.
- Under Admin Centers, select Exchange.
- In the Protection section, click Connection Filter.
- Click the pencil icon to edit the default Connection Filter policy.
- In the IP Allow List, click the plus sign to add an IP address.
- Enter the IP addresses listed at the beginning of this article.
- Click OK, then click Save.
- See the next section to bypass spam filtering and the clutter folder.
Bypass Spam Filtering and the Clutter Folder
When allowing email by IP Address in Microsoft 365, it's a good idea to create a rule to avoid spam filtering and the clutter folder.
- Navigate to Admin > Mail > Mail Flow.
- Under Mail Flow > Rules, click the plus button and select Create a new rule...
- Provide a name for the rule.
- Make selections to create this logical statement: Apply this rule if... The Sender... IP address is in any of these ranges or exactly matches.
Specify the IP addresses listed at the beginning of this article, then click OK.
If you are using Barracuda Email Gateway Defense IP addresses 184.108.40.206/21 and 220.127.116.11/20, you can find more information about them here.
- On the Modifying the message properties page, under Do the following, click Add action, click Modify the message properties, then Set a Message Header.
- Set the message header X-MS-Exchange-Organization-BypassClutter to the value true. Click OK.
Note that both of these values are case-sensitive.
- Back under Do the following, select Modify the message properties.
- Select Set the spam confidence level (SCL) to, then select Bypass Spam Filtering.
- Click Save.
Microsoft 365 Defender and ZAP
Microsoft 365 Defender with Microsoft ZAP (Zero-hour purge) blocks phishing messages, including legitimate, simulated phishing attacks used for training from Barracuda.
If you use Microsoft 365 Defender to protect your email, configure it to allow campaign emails and avoid machine clicks on links within campaign emails.
For additional information and full instructions, refer to Using Microsoft 365 Defender with Security Awareness Training.
Google Safe Browsing Initiative
This Google policy might block Security Awareness Training phishing domains that you want to use in your campaigns.
For full instructions, refer to Disabling Google Safe Browsing Warning Message Using Group Policy.
Additional Best Practices
The following sections describe additional methods of optimizing your setup of Security Awareness Training, but they are not required.
Landing Page Server Allow List
When users click a link within a campaign message, they are directed to an HTTP or HTTPS Landing Page server. The IP addresses of the Landing Page servers include those in this range:
You can also allow based on the domain name used for each campaign.
Administrative Web Application Allow List
Administrative functions are available using encrypted SSL/TLS athosted at one of the IPs in the following address range:
We strongly recommend you use Single Sign-On (SSO) for all administrative users.
Educational Content and Survey / Content Delivery Network Allow List
Barracuda's Security Awareness Training servers are located in the Midwest region of the United States. With our worldwide customers, there is always a concern about reducing latency and bandwidth delays when showing educational videos. To solve that, Barracuda can distribute the read-only multimedia content using a reputable Content Delivery Network (CDN). For security reasons, training content is only delivered via HTTPS.
To create an allow list for educational content and surveys, use the following:
Note: The CDN option is only used to distribute the Image Gallery components including MP4, WEBM, JPG, GIF, and similar file types. Barracuda recommends you allow list requests and responses for static multimedia content only. The web application and data collection are exclusively performed on the Security Awareness Training servers even with the CDN option.
Landing Page “Enable Local IP Detection”
There are two methods to enable detection of the local/non?natted IP address of a browser.
Enable Local IP Detection
When you enable local IP detection, each web page might attempt to create a WebRTC connection using stun:stun.services.mozilla.com. Be advised that Barracuda does not control this server. Upon request, Barracuda can provide firewalled access to our hosted stun/RFC 3489 service. If you choose to block access to any/all stun services, the other techniques will be attempted, such as using a custom Java applet. This technique can help augment the data collected for Portable Media Campaigns, where no user information can be associated with the Smart Attachment.
If you do not want to Enable Local IP Detection on a landing page, you can use industry-standard X_FORWARDED_FOR headers. Configure your proxy/NAT firewall to provide these headers. Depending on your network and risk environment, you might be able to configure it to selectively send those headers to the Barracuda web servers rather than sharing with all sites.
Mail Transport Routing
Barracuda strongly recommends a direct mail connection to your email server. This eliminates issues with antivirus/antispam filtering services. These filtering services can cause false clicks or block mock phishing emails entirely if they are not configured properly to allow the emails coming from the Barracuda email servers. Using a mail transport to directly route emails from the PhishLine email servers to your mail server eliminates these issues. To implement mail transport routing, Barracuda needs direct access to TCP port 25 on your email server's external IP. This usually requires a new firewall rule on your company firewall that allows this direct connection. The only other requirement is to provide Barracuda with your mail server’s public host name or public IP address.
Email Address Allow List
You might also combine the above allow list techniques with email account-specific rules based on the addresses used to send out each campaign. For example, you might choose to add
email@example.com to your safe senders list using Group Policy to facilitate delivery of campaign emails directly to user inboxes. Be sure to combine this type of allow listing with IP/DKIM/SPF allow listing. You do not want to allow list a domain or account only to open the door to real attackers. It is also a best practice to disable all allow list settings upon campaign completion.
Refer to this support link.
As a Google Workspace administrator, you can help ensure that messages received from specific sending IP addresses do not get marked as spam. Do this by adding the addresses to an email allow list in your Google Admin console. When you create an email allow list for your Google Workspace account, it affects your entire domain. You cannot create email allow lists that apply to specific organizational units. See other settings you might use instead.
Other Usage Considerations
- Malicious Code: Barracuda will never intentionally send you malware. Therefore, there is no reason to ever allow list antivirus or other malicious code filters. It is an important layer of protection you should keep in place.
- Timing: If you are using domain-based or email-account-based allow listing, you will likely want to limit those to the duration of your campaign. Otherwise, you could enable real attackers to misuse your allow list in the future.
- Domain Name: Each campaign lists the domain names that will be used to deliver your campaign content. Some administrators prefer to allow list by domain instead of IP. Be sure to take measures to prevent real attackers from exploiting those allow listed domain names for real attacks.
- Email Accounts: Each campaign lists all of the email accounts that will be used to deliver your campaign content.
- Web Pages: Each campaign lists the web page servers. If you choose to use the Content Delivery Network acceleration for Multimedia Content, you must add
media.phishline.comas a domain name.
- Message Content: Many filters examine actual message content. Within the message template editor, Security Awareness Training also provides a spam filtering score based on a popular antispam solution. To ensure delivery of messages, each campaign allows you to send test emails, so you can test the delivery of the messages and replies, while also confirming that the landing page links work.
If you have any questions about using allow lists, contact Barracuda Technical Support.
You can also allow list Security Awareness Training for Barracuda Email Security Gateway.
