To integrate Windows Server Collector, follow the procedures below:
To enable the collector for Windows Server
To install the XDR Collector for Windows Server
Enabling the XDR Collector for Windows Server
To enable the collector for Windows Server
In Barracuda XDR Dashboard, click Administration > Integrations.
On the Windows Server Integration card, click Setup.
Select Enabled.
Click Save.
Setting Up the XDR Collector for Windows Server
The XDR Collector runs as a service in your environment. While the minimum specifications are listed below, the required resources depend on the number of active integrations and the amount of data being processed.
Minimum Requirements
To set up the XDR Collector, the minimum requirements are the following:
Minimum requirements | |
---|---|
CPU | 2vCPU |
Disk Size | 10GB SSD |
Memory | 1GB |
Operating System
Windows Server 2016 and higher
Windows Server 2022 is recommended.
Required Endpoint/Port Communication
The XDR Collector must be able to communicate to the following endpoints/ports:
Logstash | a96190b49bd294a5fbb3725ff20aab78-c7f64fe7557a87d2.elb.us-east-1.amazonaws.com:5044 |
Management Server | b5e9a5096e0a4f7782cc444c8edbbd5e.fleet.us-east-1.aws.found.io:443 |
Update Server | artifacts.elastic.co:443 |
To install the XDR Collector for Windows Server
Install the XDR collector on each server you want to monitor.
In Barracuda XDR Dashboard, click Infrastructure > Collectors.
In the Policies table, next to On-Prem, click Action > Install.

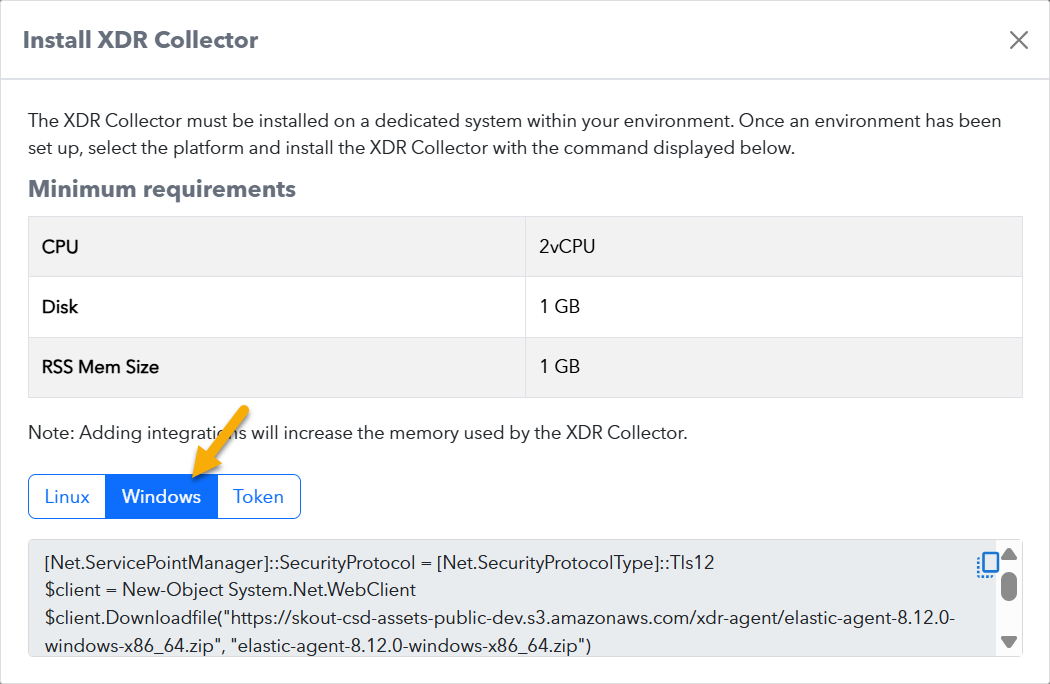

Click Windows.

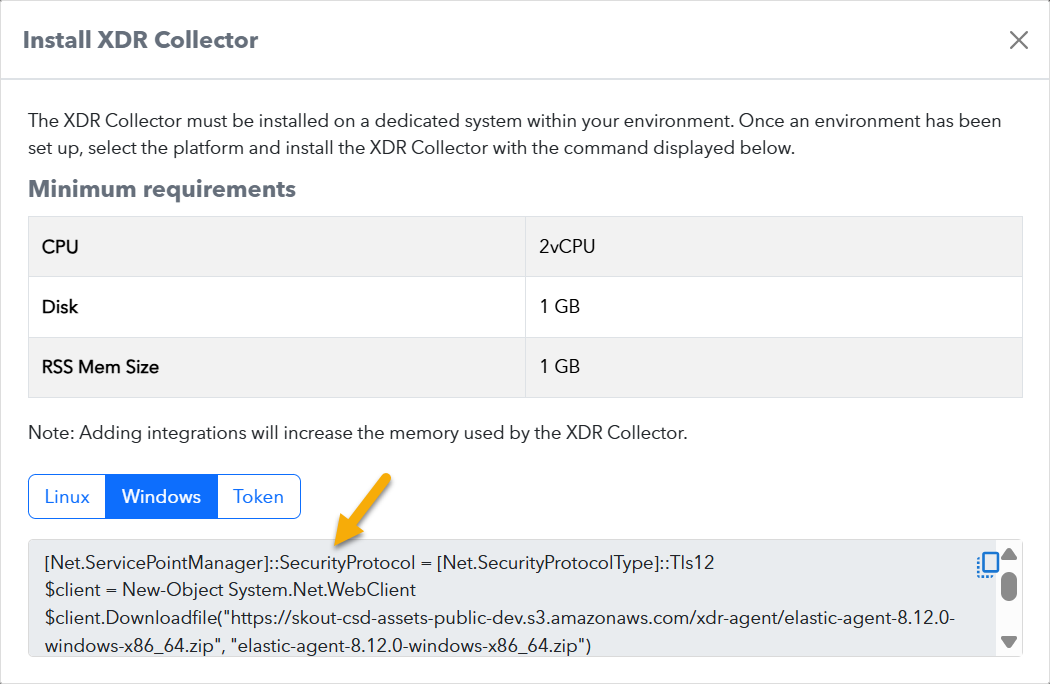

Copy the install command at the bottom of the dialog box.
On the server you want to monitor, run Powershell as an administrator, paste the install command, and run it.
