Barracuda XDR

Integrating Barracuda Application Protection

  • Last updated on

To integrate Barracuda Application Protection, do the following:

  1. Copy the application IDs

  2. Enable Barracuda Application Protection integration

  3. Configure the Web Application Firewall for syslog output

To copy the application IDs

  1. Log into WAAS (Application Protection) and copy the application ID from the URL.
    For example, if the URL of the WAAS application is: https://waas.barracudanetworks.com/applications/12345/dashboard
    The app id is 12345.

  2. If you have multiple application IDs, repeat for each application id you want to monitor.

To configure log export

The following steps should be followed for each application.

  1. Log into WAAS.

  2. Navigate to the application you want to monitor.

  3. In the Export Logs section, click Add Export Log Server.

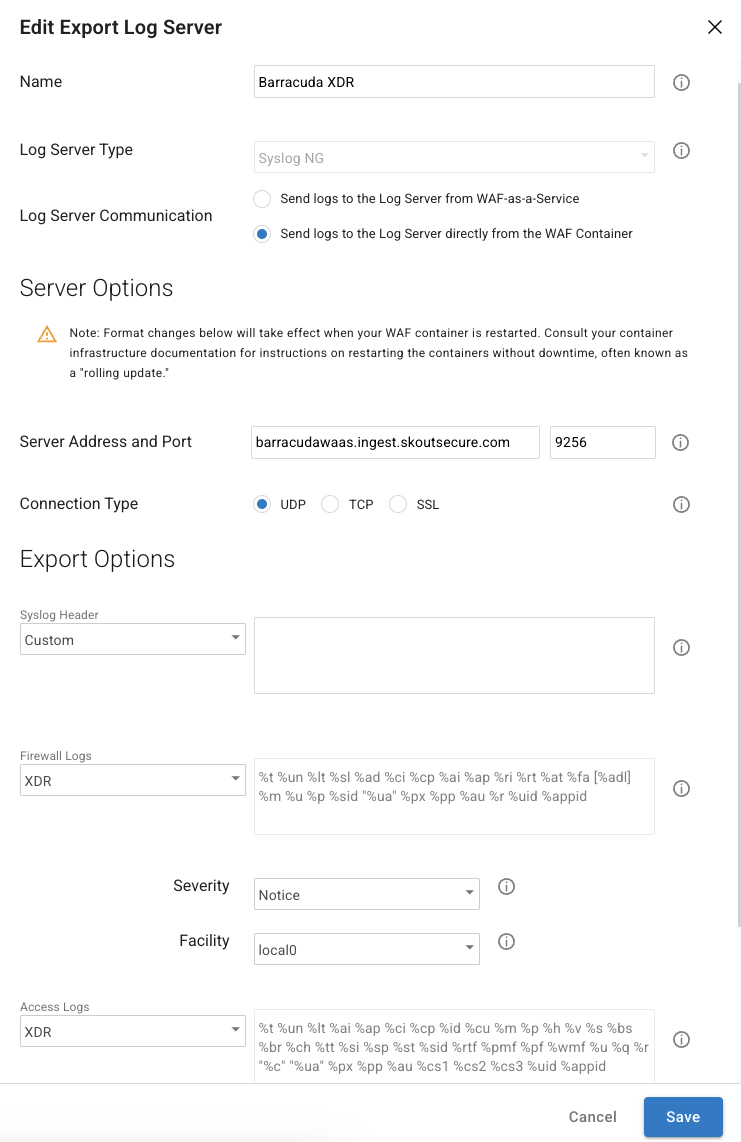

  4. On the Edit Export Log Server page, do the following:

    • In Name, type Barracuda XDR.

    • In Log Server Type, select Syslog NG.

    • In Log Server Communication (if present), select Send logs to the Log Server directly from the WAF Container.

    • In Server Address, type barracudawaas.ingest.skoutsecure.com.

    • In Port, type 9256.

    • In Connection Type, select UDP.

    • In Firewall Logs, select XDR.

    • In Access Logs, select XDR.

    • In Event Logs, select Do Not Export.


  5. Click Save.

To enable Barracuda Application Protection

  1. In Barracuda XDR Dashboard, navigate to Administration > Integrations.

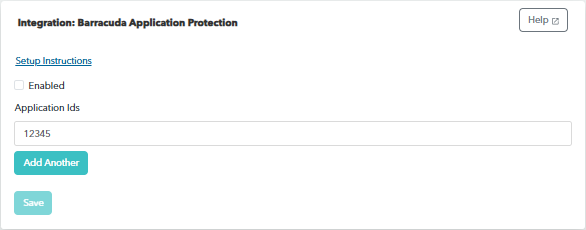

  2. On the Barracuda Application Protection card, click Setup.

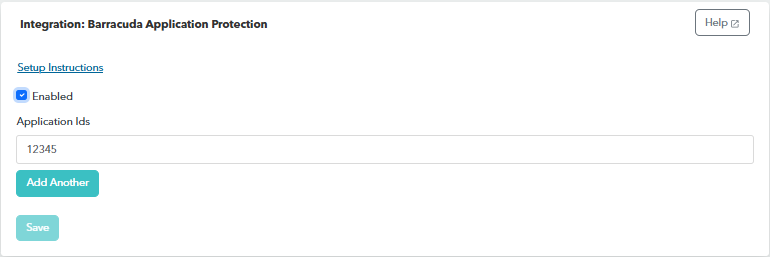

  3. Select the Enabled check box.

  4. Enter an application ID from the previous procedure.


  5. If you have multiple application IDs, click Add Another and enter another application ID. Repeat until you have added all your IDs.

  6. Click Save.
